• Very fast-acting
|
• Small size
|
• Wide current rating range (0.062A- 15A)
|
| • Halogen-free available
|
| • Wide operating temperature range |
| • Low temperature re-rating |
|
| CATALOG |
| 0251005.NRT1L COUNTRY OF ORIGIN |
0251005.NRT1L PARAMETRIC INFO
|
0251005.NRT1L PACKAGE INFO
|
0251005.NRT1L MANUFACTURING INFO
|

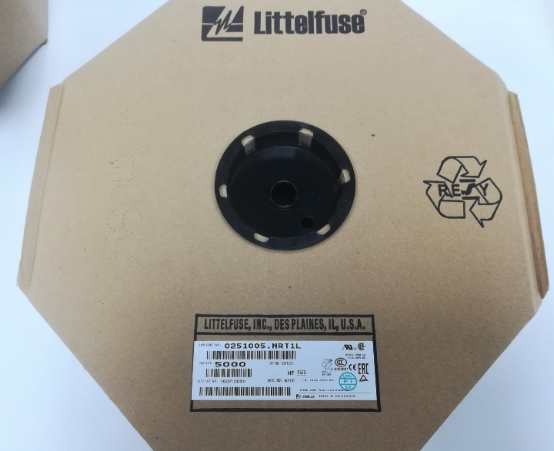

0251005.NRT1L PACKAGING INFO
|

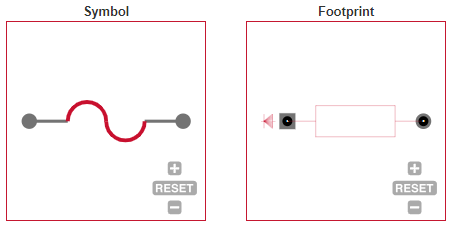

0251005.NRT1L ECAD MODELS
|
| 0251005.NRT1L APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| Mexico |
|
PARAMETRIC INFO
|
| Typical Melting I2t (A²s) |
4.14 |
| type |
Cartridge |
| Current Rating (A) |
5 |
| Voltage Rating (V) |
125 |
| Acting |
Very Fast |
| Maximum AC Voltage Rating (V) |
125 |
| Maximum DC Voltage Rating (V) |
125 |
| Application |
Audio/Video System|Flat Panel Display TV|LCD Monitor|Office Machine|Power Supply |
| Fuse Material |
Ceramic |
| Fuse Size (mm) |
2.8×7.11 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Breaking Capacity @ Rated Voltage (A) |
50@125VAC|300@125VDC |
| Typical Cold Resistance (Ohm) |
0.0155 |
| Lead Diameter(mm) |
0.64 |
| Lead Length (mm) |
52.4 |
|
|
PACKAGE INFO
|
| Install |
Through Hole |
| Package/Case |
not applicable |
| Number of Terminals |
2 |
| Terminal Pitch (mm) |
N/R |
| Product Weight (g) |
not applicable |
| Product Length (mm) |
7.11 |
| Product Depth (mm) |
N/R |
| Product Height (mm) |
N/R |
| Product Diameter (mm) |
2.8(Max) |
| Mounting surface height (mm) |
N/R |
| Termination Style |
Axial |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
N/R |
| Reflow soldering time (seconds) |
N/R |
| Number of reflow cycles |
N/R |
| standard |
N/R |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
2 to 5 |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matt Sn |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
not applicable |
|
|
PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
5000 |
| packaging type file |
Link to datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Flat–panel display TV
|
• LCD monitor
|
| • LCD backlight inverter |
| • Office machines |
| • Power supply |
| • Audio/Video system |
| • Lighting system |
• Medical equipment
|
| |
| |
