• Very fast-acting
|
• Small size
|
• Wide current rating range(0.062A- 15A)
|
| • Halogen-free available
|
| • Wide operating temperature range |
| • Low temperature re-rating |
| |
| CATALOG |
| 0251007.NRT1L COUNTRY OF ORIGIN |
0251007.NRT1L PARAMETRIC INFO
|
0251007.NRT1L PACKAGE INFO
|
0251007.NRT1L MANUFACTURING INFO
|
0251007.NRT1L PACKAGING INFO
|
0251007.NRT1L EACD MODELS
|
| 0251007.NRT1L APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
PARAMETRIC INFO
|
| Typical Melting I2t (A²s) |
10.4 |
| Type |
Cartridge |
| Current Rating (A) |
7 |
| Voltage Rating (V) |
125 |
| Acting |
Very Fast |
| Maximum AC Voltage Rating (V) |
125 |
| Maximum DC Voltage Rating (V) |
125 |
| Application |
Audio/Video System|Flat Panel Display TV|LCD Monitor|Office Machine|Power Supply |
| Fuse Material |
Ceramic |
| Fuse Size (mm) |
2.8 X 7.11 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Typical Cold Resistance (Ohm) |
0.0105 |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Package/Case |
N/A |
| Number of Terminals |
2 |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
7.11 |
| Product Depth (mm) |
N/R |
| Product Height (mm) |
N/R |
| Product Diameter (mm) |
2.8(Max) |
| Seated Plane Height (mm) |
N/R |
| Termination Style |
Axial |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
2 to 5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
5000 |
| Packaging Document |
Link to Datasheet |
|
|

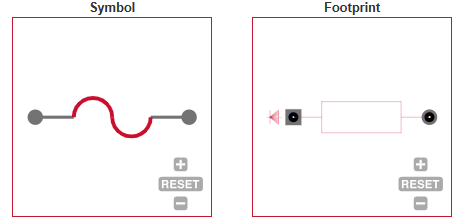

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Flat–panel display TV |
| • LCD monitor |
| • LCD backlight inverter |
| • Office machines |
• Power supply
|
| • Audio/Video system |
| • Lighting system |
| • Medical equipment |
| |
