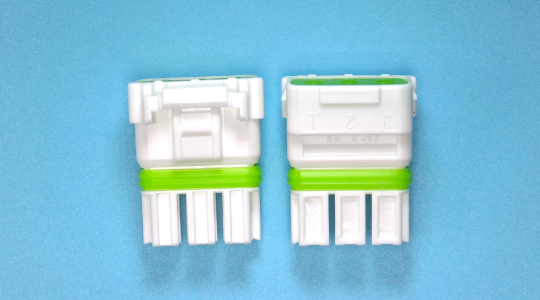

03R-WPJV-1-SMM PARAMETRIC INFO
|
03R-WPJV-1-SMM PACKAGE INFO
|
03R-WPJV-1-SMM MANUFACTURING INFO
|
03R-WPJV-1-SMM PACKAGING INFO
|
|
PARAMETRIC INFO
|
| Type |
Housing |
| Gender |
RCP |
| Number of Contacts |
3 |
| Termination Method |
Crimp |
| Maximum Current Rating (A) |
7 |
| Maximum Voltage Rating |
300VDC|300VAC |
| Housing Material |
Polybutylene Terephthalate |
| Housing Color |
White |
| Number of Rows |
1 |
| Wire Size (AWG) |
18-22 |
| IP Rating |
IPX7 |
| Insulation Resistance (MOhm) |
1000 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
5 |
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
18.5 |
| Product Depth (mm) |
22.8 |
| Product Height (mm) |
11.2 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/R |
| Under Plating Material |
N/R |
| Terminal Base Material |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Box |
| Packaging Document |
Link to Datasheet |
|
|
