| 0402ZD104KAT2A COUNTRY OF ORIGIN |
0402ZD104KAT2A PARAMETRIC INFO
|
0402ZD104KAT2A PACKAGE INFO
|
0402ZD104KAT2A MANUFACTURING INFO
|
0402ZD104KAT2A PACKAGING INFO
|

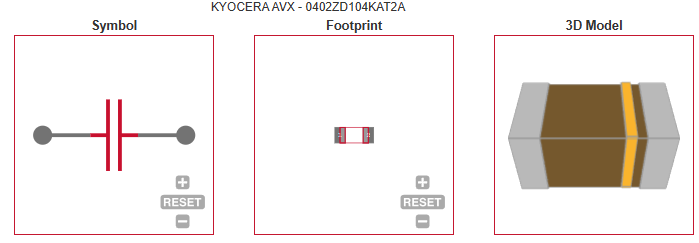

0402ZD104KAT2A EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Thailand |
| Japan |
| China |
|
PARAMETRIC INFO
|
| Capacitance Value |
0.1uF |
| Voltage |
10VDC |
| Tolerance |
10% |
| Dielectric |
X5R |
| Technology |
Standard |
| Maximum Operating Temperature (°C) |
85 |
| Case Style |
Ceramic Chip |
| Construction |
Flat |
| Microwave Application |
No |
| Operating Temperature (°C) |
-55 to 85 |
| Minimum Operating Temperature (°C) |
-55 |
| DC Rated Voltage (VDC) |
10 |
| Negative Capacitance Tolerance (%) |
-10 |
| Positive Capacitance Tolerance (%) |
10 |
| Maximum Storage Temperature (°C) |
30 |
| Minimum Storage Temperature (°C) |
5 |
| Maximum Dissipation Factor (%) |
12.5 |
| Polarity |
Non Polar |
| Special Features |
Available in High Capacitance Values (Up to 100uF)|Well Suited For Decoupling and Filtering Applications |
| Test Frequency (Hz) |
1K |
| Fixed/Variable |
Fixed |
| Maximum Terminal Width (mm) |
0.7 |
|
|
PACKAGE INFO
|
| Package/Case |
0402 |
| Mounting |
Surface Mount |
| Termination Style |
Pad |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
1 |
| Product Depth (mm) |
0.5 |
| Product Height (mm) |
0.56(Max) |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
N/A |
| Length Tolerance (mm) |
±0.2 |
| Depth Tolerance (mm) |
±0.2 |
| Height Tolerance (mm) |
N/A |
| Diameter Tolerance (mm) |
N/R |
| Number of Terminals |
2 |
| Size (mm) |
1 X 0.5 X 0.56 |
| Maximum Product Length (mm) |
1.2 |
| Maximum Product Depth (mm) |
0.7 |
| Maximum Product Height (mm) |
0.56 |
|
| |
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
3 |
|
|

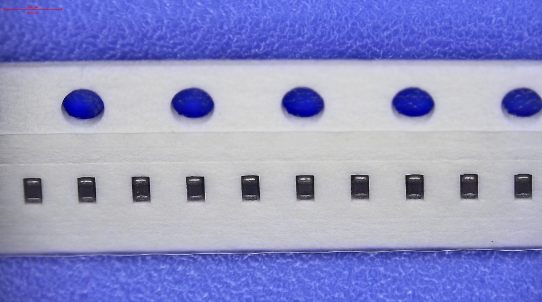

PACKAGING INFO
|
| Packaging Suffix |
2 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000|2000|3000|4000|10000|15000|20000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Paper |
|
|
ECAD MODELS
|
|
| |
