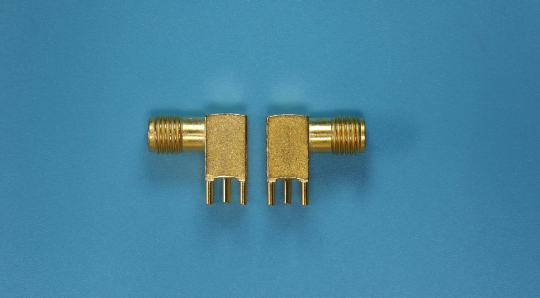

0733910083 COUNTRY OF ORIGIN
|
0733910083 PARAMETRIC INFO
|
0733910083 PACKAGE INFO
|
0733910083 MANUFACTURING INFO
|
0733910083 PACKAGING INFO
|
0733910083 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
SMA |
| Gender |
RCP |
| Operating Frequency (Hz) |
0 to 18G |
| Impedance (Ohm) |
50 |
| Termination Method |
Solder |
| Contact Plating |
Gold |
| Contact Gender |
SKT |
| Contact Material |
Beryllium Copper |
| Terminate To |
PCB |
| Body Plating |
Gold |
| Body Material |
Zinc Alloy |
| Insulator Material |
Polytetrafluoroethylene |
| Polarity |
Standard |
| Mating System |
Threaded |
| Maximum Voltage Rating |
500VAC |
|
|
PACKAGE INFO
|
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Product Length (mm) |
6.35 |
| Product Depth (mm) |
14.8 |
| Product Height (mm) |
10.07 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
3.44 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
N/A |
| Terminal Base Material |
Brass |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Packaging Document |
Link to Datasheet |
|
|

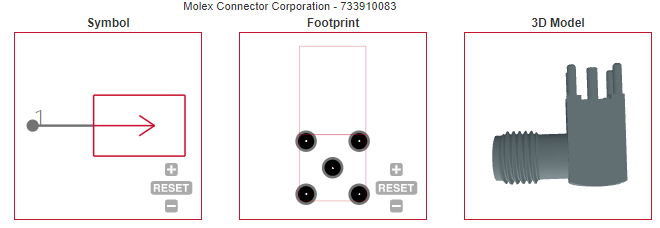

ECAD MODELS
|
|
|
