| CATALOG |
1-776163-5 COUNTRY OF ORIGIN
|
1-776163-5 PARAMETRIC INFO
|
1-776163-5 PACKAGE INFO
|
1-776163-5 MANUFACTURING INFO
|
1-776163-5 PACKAGING INFO
|
1-776163-5 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Mexico
|
United States of America
|
|
PARAMETRIC INFO
|
| Number of Contacts |
35 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
17/Contact |
| Gender |
PL |
| IP Rating |
IP6K9K |
| Number of Rows |
3 |
| Contact Plating |
Gold |
| Operating Temperature (°C) |
-40 to 125 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
4 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Brass |
|
|
PACKAGING INFO
|
| Quantity Of Packaging |
220 |
|
|

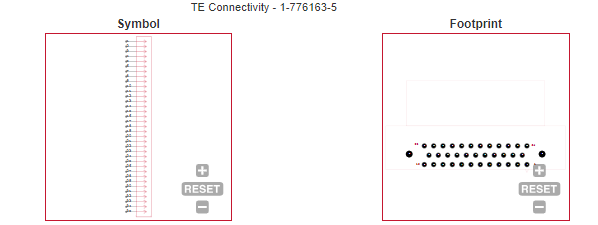

ECAD MODELS
|
|
|
