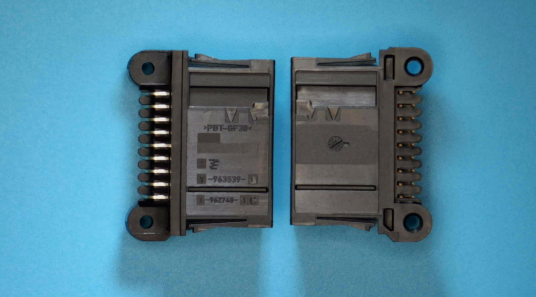

1-963539-1 COUNTRY OF ORIGIN
|
1-963539-1 PARAMETRIC INFO
|
1-963539-1 PACKAGE INFO
|
1-963539-1 MANUFACTURING INFO
|
1-963539-1 PACKAGING INFO
|
1-963539-1 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Germany
|
|
PARAMETRIC INFO
|
| Type |
Shrouded Header (4 Sides) |
| Gender |
HDR |
| Number of Contacts |
18 |
| Termination Method |
Solder |
| Maximum Voltage Rating |
12VDC |
| Housing Material |
Glass Filled Polybutylene Terephthalate |
| Housing Color |
Black |
| Contact Material |
Copper Iron |
| Contact Plating |
Tin |
| Number of Rows |
2 |
| Row Spacing (mm) |
2.54 |
| Insulation Resistance (MOhm) |
100 |
| Operating Temperature (°C) |
-40 to 130 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
130 |
| Mating Cycle (Cycles) |
20 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2.54 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Product Length (mm) |
39 |
| Product Depth (mm) |
27.9 |
| Product Height (mm) |
17 |
|
|
MANUFACTURING INFO
|
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
240 |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
384 |
|
|

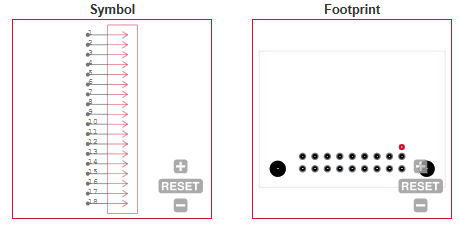

ECAD MODELS
|
|
|
