1062-20-0122 COUNTRY OF ORIGIN
|
1062-20-0122 PARAMETRIC INFO
|
1062-20-0122 PACKAGE INFO
|
1062-20-0122 MANUFACTURING INFO
|
1062-20-0122 PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
Germany
|
India
|
Korea (Republic of)
|
United Kingdom of Great Britain and Northern Ireland
|
United States of America
|
|
PARAMETRIC INFO
|
| Series Name |
HD30|HDP20 |
| Connector Type |
Connector Circular |
| Gender |
SKT |
| Termination Method |
Crimp |
| Contact Type |
Signal |
| Maximum Current Rating (A) |
7.5 |
| Contact Material |
Copper Alloy |
| Contact Plating |
Nickel |
| Shielded |
No |
| Contact Size |
20 |
| Wire Size (AWG) |
16-22 |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
| Mating Cycle (Cycles) |
100 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
20.12 |
| Product Depth (mm) |
4.4 |
| Product Height (mm) |
N/A |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Ni |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|

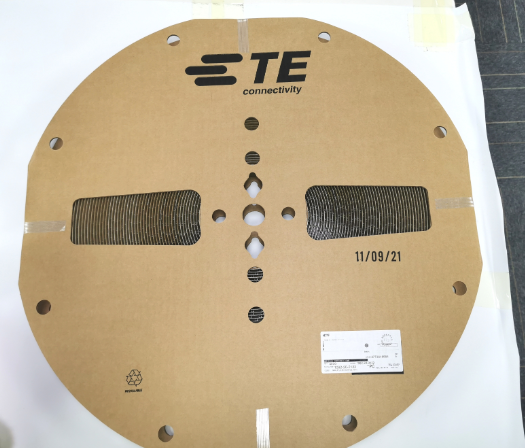

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
|
|
