| • 3.3V operation. |
| • Higher-performance Neuron® Core —internal system clock scales up
to 80MHz. |
| • Substantial device price reduction. |
| • Serial memory interface for
inexpensive external EEPROM
and flash non-volatile memories. |
| • Supports up to 254 Network
Variables (NVs) and 127 aliases. |
| • Low-cost surface mount FT-X3
Communications Transformer.
|
| • User-programmable interrupts provide faster response time to external events. |
| • Includes hardware UART with 16-byte receive and transmit FIFOs. |
| • 7 mm x 7 mm 48-pin QFN package. |
| • Supports polarity-insensitive free topology star, daisy chain, bus, loop,
or mixed topology wiring. |
| • Compliant with TP/FT-10 channels
using FT 3120®/FT 3150® Smart
Transceivers and FTT-10/FTT-10A/
LPT-10/LPT-11 Transceivers. |
| • 12 I/O pins with 35 programmable
standard I/O models. |
| • Supports up to 42KB of application
code space. |
| • 64KB RAM (44KB user-accessible)
and 16KB ROM on-chip memories. |
| • Unique 48-bit Neuron ID in every
device for network installation and
management. |
| • Very high common-mode noise
immunity |
| • -40°C to +85°C operating temperature range. |
|
| CATALOG |
| 14235R-2000 COUNTRY OF ORIGIN |
| 14235R-2000 PARAMETRIC INFO |
| 14235R-2000 PACKAGE INFO |
| 14235R-2000 MANUFACTURING INFO |
| 14235R-2000 PACKAGING INFO |
| 14235R-2000 ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| United States of America |
|
| PARAMETRIC INFO |
| Type |
Smart Transceiver |
| Number of Transmitters |
1 |
| Number of Receivers |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Power Supply Type |
Single |
| Typical Single Supply Voltage (V) |
3.3 |
| Minimum Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
3.6 |
| Maximum Supply Current (mA) |
52 |
|
| PACKAGE INFO |
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
No Lead |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
0.85(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.9(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
N/A |
|
| MANUFACTURING INFO |
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
|
| PACKAGING INFO |
| Packaging Document |
Link to Datasheet |
|

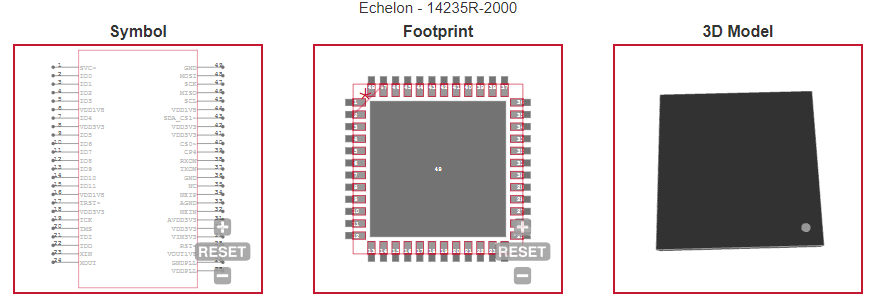

| ECAD MODELS |
 |
|
