2-1445057-4 COUNTRY OF ORIGIN
|
2-1445057-4 PARAMETRIC INFO
|
2-1445057-4 PACKAGE INFO
|
2-1445057-4 MANUFACTURING INFO
|
2-1445057-4 PACKAGING INFO
|
2-1445057-4 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Wire to Board |
| Gender |
HDR |
| Number of Contacts |
4Power |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
5/Contact |
| Maximum Voltage Rating |
250VDC|250VAC |
| Housing Material |
High Temperature Nylon |
| Housing Color |
Black |
| Contact Material |
Brass |
| Contact Plating |
Tin Over Nickel |
| Number of Rows |
1 |
| Maximum Contact Resistance (mOhm) |
20 |
| Wire Size (AWG) |
20-24 |
| Operating Temperature (°C) |
-40 to 105 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
3 |
| Body Orientation |
Right Angle |
| Mounting |
Surface Mount |
| Product Length (mm) |
N/A |
| Product Depth (mm) |
11.16 |
| Product Height (mm) |
5.67 |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Brass |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|

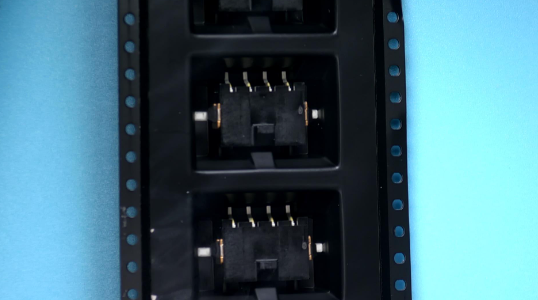

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
215 |
|
|

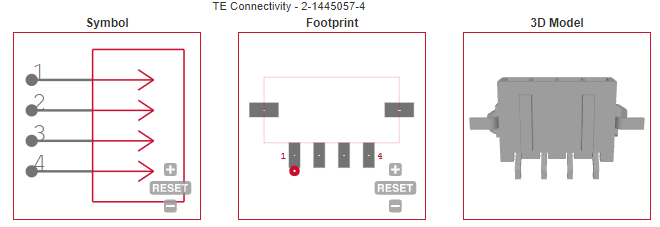

ECAD MODELS
|
|
|
