| CATALOG |
211431-6 COUNTRY OF ORIGIN
|
211431-6 PARAMETRIC INFO
|
211431-6 PACKAGE INFO
|
211431-6 MANUFACTURING INFO
|
211431-6 PACKAGING INFO
|
211431-6 EACD MODELS
|
|
COUNTRY OF ORIGIN
|
United States of America
|
|
PARAMETRIC INFO
|
| Connector Type |
Connector Rectangular |
| Gender |
SKT |
| Termination Method |
Solder |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold |
| Contact Size |
22 |
| Wire Size (AWG) |
22 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
32.99 |
| Product Depth (mm) |
1.55 |
| Product Height (mm) |
1.55 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
N/A |
| Shelf Life Condition |
N/A |
|
|
PACKAGING INFO
|
|
|
|

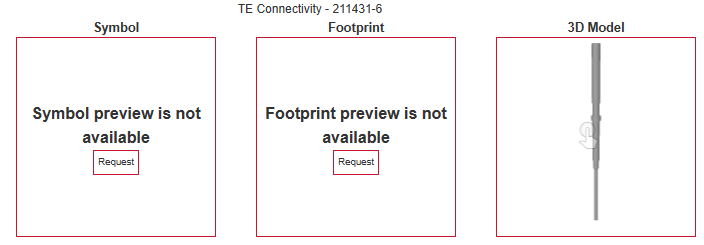

| ECAD MODELS |
|
|
