COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
USB 2.0 Type C |
| Gender |
RCP |
| Number of Contacts |
24 |
| Termination Method |
Solder |
| Number of Ports |
1 |
| Maximum Current Rating (A) |
1.25/Contact |
| Maximum Voltage Rating |
30VDC|30VAC |
| Housing Color |
Black |
| Housing Material |
High Temperature Resistant Plastic |
| Shell Material |
Stainless Steel |
| Shell Plating |
Nickel |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold Over Nickel |
| Insulation Resistance (MOhm) |
100 |
| Maximum Contact Resistance (mOhm) |
50 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Mating Cycle (Cycles) |
10000 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
0.8/0.65/0.5 |
| Body Orientation |
Right Angle |
| Mounting |
Surface Mount |
| Number of Terminals |
24 |
| Product Length (mm) |
8.94 |
| Product Depth (mm) |
6.5 |
| Product Height (mm) |
3.76 |
|
|

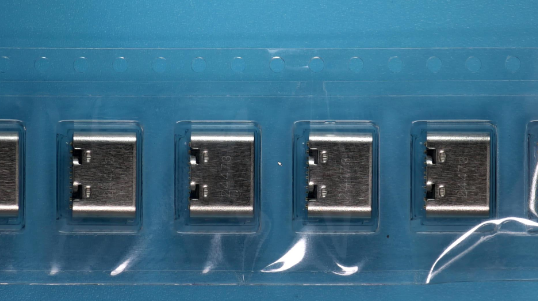

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

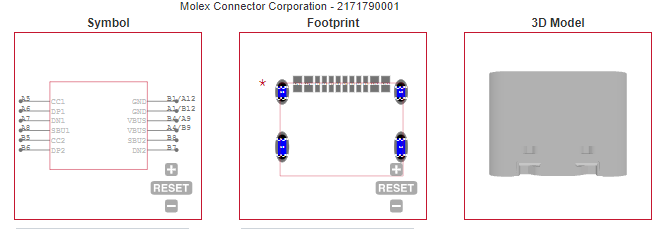

ECAD MODELS
|
|
|
