| CATALOG |
2199249-3 COUNTRY OF ORIGIN
|
2199249-3 PARAMETRIC INFO
|
2199249-3 PACKAGE INFO
|
2199249-3 MANUFACTURING INFO
|
2199249-3 PACKAGING INFO
|
2199249-3 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Shield Finger |
| Connector Type |
Connector Headers and PCB Receptacles |
| Operating Temperature (°C) |
-30 to 85 |
| Minimum Operating Temperature (°C) |
-30 |
| Maximum Operating Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Product Length (mm) |
3.2 |
| Product Depth (mm) |
1.5 |
| Product Height (mm) |
2 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
Phosphor-Bronze |
|
|

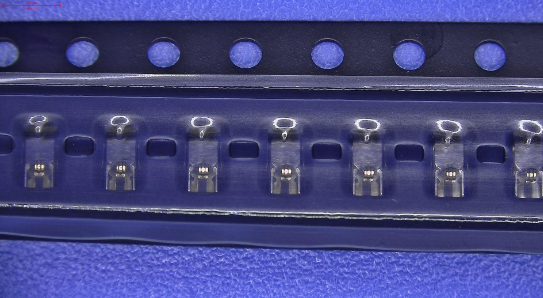

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
7000 |
|
|
ECAD MODELS
|
|
|
