| Type |

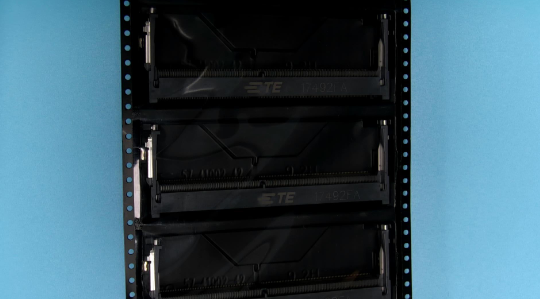

DDR4 DIMM Socket |
| Gender |
SKT |
| Number of Contacts |
260 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
0.5/Contact |
| Maximum Voltage Rating |
25VAC |
| Housing Material |
High Temperature Thermoplastic |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold Over Nickel |
| Maximum Contact Resistance (mOhm) |
50 |
| Insulation Material |
High Temperature Thermoplastic |
| Insulation Resistance (MOhm) |
100 |
| Number of Rows |
2 |
| Row Spacing (mm) |
8.2 |
| Operating Temperature (°C) |
-55 to 85 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
85 |
| Mating Cycle (Cycles) |
50 |
| Maximum Terminal Coplanarity (mm) |
0.1 |
