COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Chip |
| Minimum Frequency (MHz) |
2400 |
| Maximum Frequency (MHz) |
2500 |
| Typical Antenna Gain |
-0.5dBi |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Input Power (mW) |
3000 |
| Impedance (Ohm) |
50 |
|
|
PACKAGE INFO
|
| Supplier Package |
CSMD |
| Pin Count |
2 |
| PCB |
2 |
| Tab |
N/R |
| Package Length (mm) |
3.2 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.3 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Ceramic |
| Package Description |
Ceramic Surface Mount Device |
| Package Family Name |
SMD |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
E |

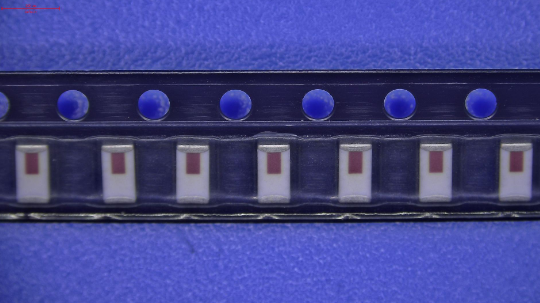

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
|
| |
