• Single Supply with Operation from 1.7V to 5.5V
|
• Low-Power CMOS Technology:- Read current 400 A, max- Standby current 1 A, max at 85°C
|
• Two-Wire Serial Interface, I2C Compatible
|
| • Cascadable up to Four Devices
|
| • Schmitt Trigger Inputs for Noise Suppression |
| • Output Slope Control to Eliminate Ground Bounce |
| • 1 MHz, 400 kHz, and 100 kHz Clock Compatibility |
| • Page Write Time 5 ms Maximum |
| • Self-timed Erase/Write Cycle |
| |
| CATALOG |

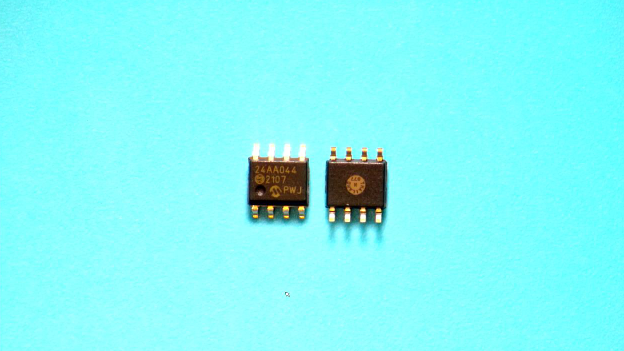

| 24AA044-I/SN COUNTRY OF ORIGIN |
24AA044-I/SN PARAMETRIC INFO
|
24AA044-I/SN PACKAGE INFO
|
24AA044-I/SN MANUFACTURING INFO
|
24AA044-I/SN PACKAGING INFO
|
24AA044-I/SN EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Philippines |
| China |
| Thailand |
| Singapore |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Supplier packaging |
SOIC N |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
8 |
| Pin shape |
Gull-wing |
| PCB |
8 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
4.9 |
| Package width (mm) |
3.9 |
| Package height (mm) |
1.25(Min) |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
1.75(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Narrow Body |
| Package series name |
SO |
| JEDEC |
MS-012AA |
| Package outline |
Link to datasheet |
|
|
PACKAGE INFO
|
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
20 to 40 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020C |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Number of Wave Cycles |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
IPC-1752 |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Package |
Tube |
| Packing quantity |
100 |
|
|

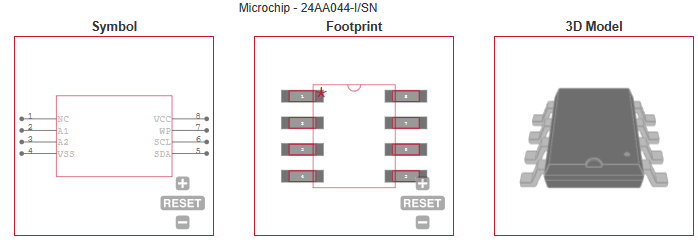

ECAD MODELS
|
|
| |
