• Single Supply with Operation down to 1.7V for
24AA01 and 24FC01 Devices, 2.5V for 24LC01B
Devices
|
• Low-Power CMOS Technology:
- Read current 1 mA, maximum
- Standby current 1 µA, maximum (I-temp.)
|
• 2-Wire Serial Interface, I2C Compatible
|
• Schmitt Trigger Inputs for Noise Suppression
|
• Output Slope Control to Eliminate Ground Bounce
|
| • 100 kHz, 400 kHz and 1 MHz Compatibility |
| • Page Write Time: 5 ms, Maximum |
| • Self-Timed Erase/Write Cycle |
| • Hardware Write-Protect |
| • ESD Protection >4,000V |
| • More than 1 Million Erase/Write Cycles |
| • Data Retention >200 Years |
| • Factory Programming Available
|
| • RoHS Compliant |
| • Temperature Ranges:
- Industrial (I): -40°C to +85°C
- Extended (E): -40°C to +125°C |
| • Automotive AEC-Q100 Qualified |
|
| CATALOG |
24LC01BT-I/OT COUNTRY OF ORIGIN
|
24LC01BT-I/OT PARAMETRIC INFO
|
24LC01BT-I/OT PACKAGE INFO
|
24LC01BT-I/OT MANUFACTURING INFO
|
24LC01BT-I/OT PACKAGING INFO
|
24LC01BT-I/OT ECAD MODELS
|
| 24LC01BT-I/OT FUNCTIONAL BLOCK DIAGRAM |
|
COUNTRY OF ORIGIN
|
| Thailand |
| United States of America |
|
PARAMETRIC INFO
|
| Density (bit) |
1K |
| Interface Type |
Serial-I2C |
| Maximum Operating Frequency (MHz) |
0.4 |
| Maximum Access Time (ns) |
900 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Programmability |
Yes |
| Density in Bits (bit) |
1024 |
| Maximum Operating Current (mA) |
3 |
| Hardware Data Protection |
Yes |
| Programming Voltage (V) |
2.5 to 5.5 |
| Organization |
128x8 |
| Data Retention (Year) |
200(Min) |
| Minimum Operating Supply Voltage (V) |
2.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Number of Bits per Word (bit) |
8 |
| Maximum Storage Temperature (°C) |
150 |
| Address Bus Width (bit) |
7 |
| Process Technology |
CMOS |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.3(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

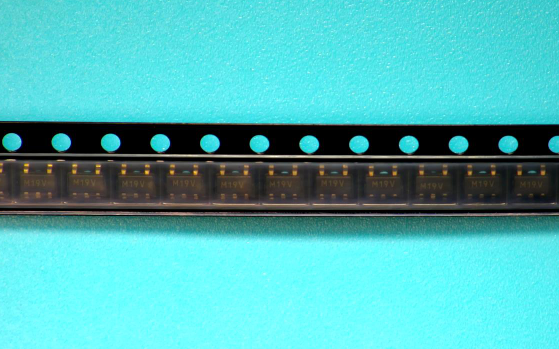

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

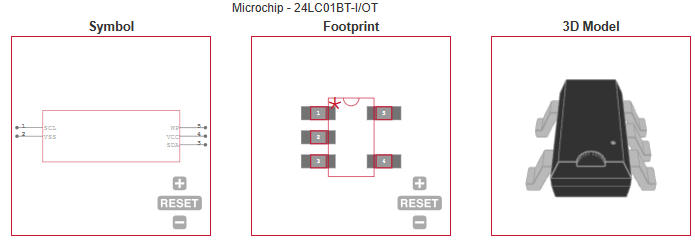

ECAD MODELS
|
|
|

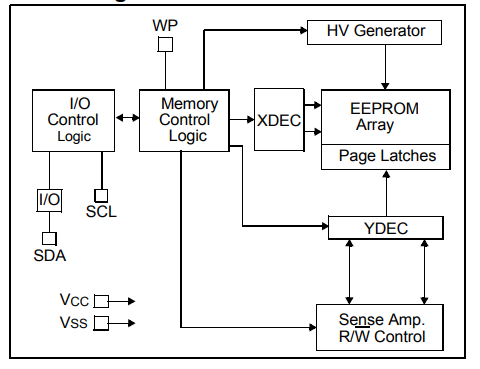

FUNCTIONAL BLOCK DIAGRAM
|
|
|
