• RoHS compliant, lead-free
and halogen-free
|
• Fast response to fault
currents
|
• High voltage
|
| • Low-profile |
|
| CATALOG |
2920L700/12MR PARAMETRIC INFO
|
2920L700/12MR PACKAGE INFO
|
2920L700/12MR MANUFACTURING INFO
|
2920L700/12MR PACKAGING INFO
|
2920L700/12MR APPLICATIONS
|
|
PARAMETRIC INFO
|
| Trip Current (A) |
14 |
| Hold Current (A) |
7 |
| Maximum Voltage Rating |
12VDC |
| Maximum Current Rating (A) |
50 |
| Typical Power Dissipation (W) |
2 |
| Minimum Initial Resistance (Ohm) |
0.003 |
| Maximum Post Trip Resistance (Ohm) |
0.018 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Trip Time (s) |
2@35A |
| Application |
Automotive Electronic Control Module Protection|IEE1394 Port Protection|Low Voltage Telecom Equipment Protection|Powered Ethernet Port Protection |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
| Size (mm) |
7.98 X 5.44 X 1.6 |
|
|
PACKAGE INFO
|
| Package/Case |
2920 |
| Number of Terminals |
2 |
| Mounting |
Surface Mount |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
7.98(Max) |
| Product Depth (mm) |
5.44(Max) |
| Product Height (mm) |
1.6(Max) |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Termination Style |
Solder Pad |
|
|
MANUFACTURING INFO
|
| MSL |
2a |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
40 |
| Number of Reflow Cycle |
1 |
| Standard |
N/A |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/R |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |

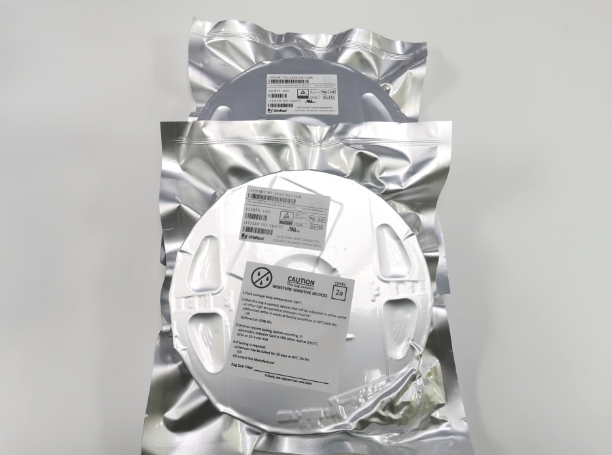

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• IEEE 1394 port protection
|
• Powered ethernet port
protection (IEEE 802.3 af)
|
| • Automotive electronic
control module protection
|
| • Low voltage telecom
equipment protection
|
|
| |
