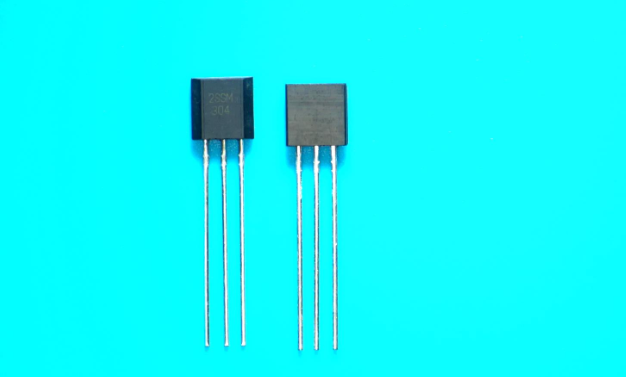

• High sensitivity: 25 Gauss maximum operate point allows for
extended sensing distance or a smaller magnet
|
• 3.8 Vdc to 30 Vdc supply voltage range
|
• Omnipolar sensing: Activates with either North or South pole
|
• Temperature range: -40 °C to 150 °C [-40 °F to 302 °F]
|
• Digital current-sinking output
|
• RoHs compliant, meets Directive 2002/95/EC
|
|
| CATALOG |
| 2SS52M COUNTRY OF ORIGIN |
2SS52M PARAMETRIC INFO
|
2SS52M PACKAGE INFO
|
2SS52M MANUFACTURING INFO
|
2SS52M PACKAGING INFO
|
2SS52M ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
|
Mexico
|
|
PARAMETRIC INFO
|
| Type |
Dimensional |
| Module/IC Classification |
IC |
| Typical Operating Supply Voltage (V) |
5|9|12|15|18|24 |
| Maximum Operating Supply Voltage (V) |
30 |
| Maximum Output Voltage |
400mV |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Operating Supply Voltage (V) |
3.8 |
|
|
PACKAGE INFO
|
| Supplier Package |
N/A |
| Basic Package Type |
Through Hole |
| Pin Count |
3 |
| Lead Shape |
Through Hole |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
4.5 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
4.5 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/A |
| Mounting |
Through Hole |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 to 270 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Bulk |
| Quantity Of Packaging |
1000 |
|
|

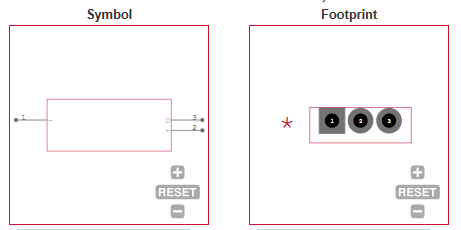

ECAD MODELS
|
|
| |
