3-1447221-4 COUNTRY OF ORIGIN
|
3-1447221-4 PARAMETRIC INFO
|
3-1447221-4 PACKAGE INFO
|
3-1447221-4 MANUFACTURING INFO
|
3-1447221-4 PACKAGING INFO
|
3-1447221-4 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Switzerland
|
Japan
|
|
PARAMETRIC INFO
|
| Connector Type |
Connector Headers and PCB Receptacles |
| Gender |
SKT |
| Termination Method |
Crimp |
| Contact Type |
Power |
| Maximum Voltage Rating |
250VDC|250VAC |
| Maximum Current Rating (A) |
6 |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold Over Nickel |
| Shielded |
No |
| Wire Size (AWG) |
20 |
| Operating Temperature (°C) |
-40 to 125 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
26.325 |
| Product Depth (mm) |
3.7 |
| Product Height (mm) |
3.7 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
|
|
|

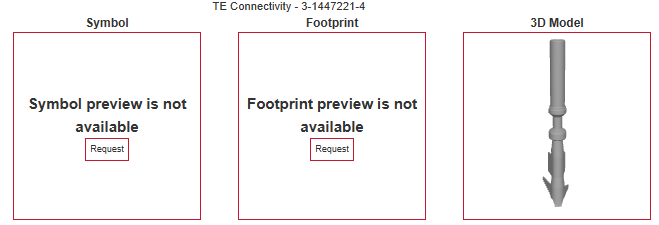

ECAD MODELS
|
|
|
