3-338168-2 COUNTRY OF ORIGIN
|
3-338168-2 PARAMETRIC INFO
|
3-338168-2 PACKAGE INFO
|
3-338168-2 MANUFACTURING INFO
|
3-338168-2 PACKAGING INFO
|
3-338168-2 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Switzerland
|
Poland
|
United Kingdom of Great Britain and Northern Ireland
|
Netherlands
|
China
|
|
PARAMETRIC INFO
|
| Type |
D-Sub |
| Contact Gender |
PIN |
| Number of Contacts |
9 |
| Termination Method |
Solder |
| Number of Ports |
1 |
| Maximum Current Rating (A) |
6/Contact |
| Gender |
PL |
| Number of Rows |
2 |
| Housing Material |
Polyester |
| Shell Material |
Steel |
| Shell Plating |
Tin |
| Shell Size |
1 |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Gold Over Nickel |
| Operating Temperature (°C) |
-55 to 105 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
105 |
| Less Contact |
No |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
1.37 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Number of Terminals |
9 |
| Product Length (mm) |
30.9 |
| Product Depth (mm) |
21.3 |
| Product Height (mm) |
13.6 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
265 |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Phosphor-Bronze |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
55 |
|
|

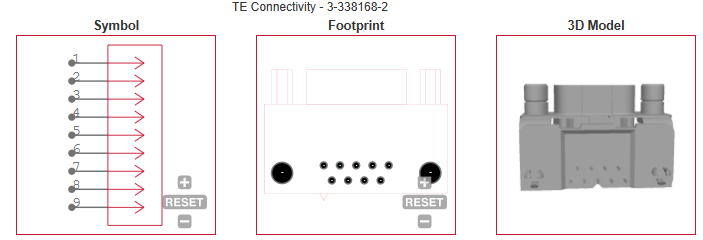

| ECAD MODELS |
|
| |
