COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Shrouded Header (4 Sides) |
| Gender |
HDR |
| Number of Contacts |
2Power |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
5/Contact |
| Maximum Voltage Rating |
250VDC |
| Housing Material |
High Temperature Nylon |
| Housing Color |
Black |
| Contact Material |
Brass |
| Contact Plating |
Tin |
| Number of Rows |
2 |
| Row Spacing (mm) |
3 |
| Maximum Contact Resistance (mOhm) |
20 |
| Polarization Type |
Center Key |
| Wire Size (AWG) |
20-30 |
| Insulation Resistance (MOhm) |
100 |
| Operating Temperature (°C) |
-40 to 105 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Mating Cycle (Cycles) |
30 |
| Tail Length (mm) |
3.18 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
3 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Product Length (mm) |
7 |
| Product Depth (mm) |
11.92 |
| Product Height (mm) |
8.67 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Brass |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
533 |
|
|

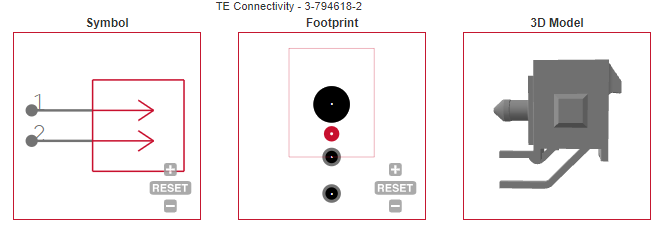

ECAD MODELS
|
|
|
