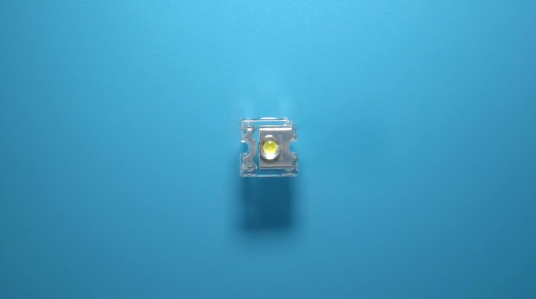

• High Flux Output.
|
• Low Profile.
|
• Low Thermal Resistance.
|
• Low Power Consumption
|
• The phosphor filled in the reflector converts the blue emission of InGaN chip to ideal white.
|
• Typical chromaticity coordinates x=0.30, y=0.29 according to CIE1931
|
• The product itself will remain within RoHS compliant version.
|
|
| CATALOG |
30-01/T4C-4PRB COUNTRY OF ORIGIN
|
30-01/T4C-4PRB PARAMETRIC INFO
|
30-01/T4C-4PRB PACKAGE INFO
|
30-01/T4C-4PRB MANUFACTURING INFO
|
30-01/T4C-4PRB PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Uni-Color |
| Color |
White |
| Category |
Standard LED |
| Mounting Orientation |
Top Mount |
| Lens Shape Type |
Circular |
| LED Material |
InGaN |
| Lead Standoff |
No |
| High Brightness |
No |
| Supplier Color |
White |
| Test Current (mA) |
30 |
| Number of LEDs |
1 |
| Viewing Angle (°) |
60 |
| Luminous Flux |
4.5lm |
| Lens Appearance |
Colorless Non Diffused |
| Typical Color Temperature |
x=0.3/y=0.29 |
| High Power |
No |
| Maximum Forward Voltage (V) |
4 |
| Maximum Forward Current (mA) |
30 |
| Reverse Voltage (V) |
5 |
| Maximum Power Dissipation (mW) |
100 |
| Lens Dimensions (mm) |
3x3x1.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Forward Voltage Range (V) |
3.3 to 5 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
100 |
|
|
PACKAGE INFO
|
| Supplier Package |
N/A |
| Pin Count |
4 |
| PCB |
4 |
| Tab |
N/R |
| Pin Pitch (mm) |
5.08 |
| Package Length (mm) |
7.62 |
| Package Width (mm) |
7.62 |
| Package Height (mm) |
4 |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
60 |
|
| |
