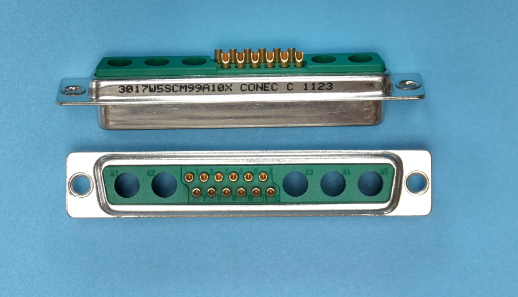

3017W5SCM99A10X PARAMETRIC INFO
|
3017W5SCM99A10X PACKAGE INFO
|
3017W5SCM99A10X MANUFACTURING INFO
|
|
PARAMETRIC INFO
|
| Type |
D-Sub |
| Contact Gender |
F |
| Number of Contacts |
12Signal/5Cavity |
| Termination Method |
Solder Cup |
| Number of Ports |
1 |
| Gender |
RCP |
| Number of Rows |
2 |
| Housing Material |
Steel |
| Shell Plating |
Tin |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold Over Nickel |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
N/A |
| Body Orientation |
Straight |
| Mounting |
Panel Mount |
| Number of Terminals |
12 |
| Product Length (mm) |
69.7 |
| Product Depth (mm) |
14.6 |
| Product Height (mm) |
12.93 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
|
|
