3224W-1-102E Bourns, Inc. 3224 - 4 mm SMD Trimpot® Trimming Potentiometer

2023/08/4 1,140

* Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed

* Halogen free** with date code 114

* Sealed to withstand board wash processing

* Pick and place centering design, with flush adjustment

* 4mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint

* Low CRV - 1 %

* RoHS compliant* - see processing information on RoHS compliant surface mount trimmers

* For trimmer applications/processing guidelines, click here

CATALOG

COUNTRY OF ORIGIN

PACKAGING INFO

PARAMETRIC INFO

PACKAGE INFO

ECAD Models

SIMILAR PRODUCTS

COUNTRY OF ORIGIN

Costa Rica

El Salvador

Singapore

United States of America

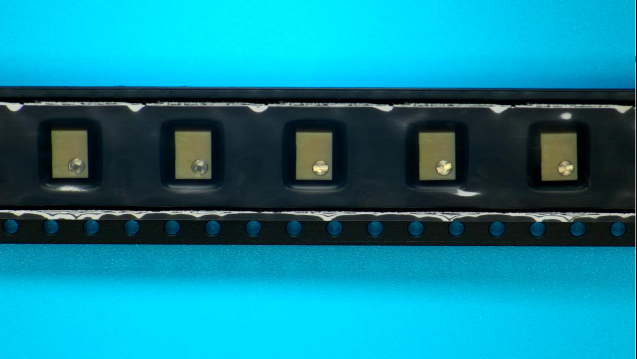

PACKAGING INFO

PARAMETRIC INFO

Resistance Value (Ohm)	1K
Positions of Adjustment	Top
Electrical Rotation (°)	4320
Power Rating (W)	0.25 (1/4)
Tolerance	10%
Temperature Coefficient (ppm/°C)	±100
Type	Trimmer
Technology	Cermet
Negative Resistance Tolerance (%)	-10
Positive Resistance Tolerance (%)	10
Linear or Logarithmic	Lin
Shaft Diameter (mm)	1.5
Number of Elements	1
Number of Turns (Turns)	12(Elec)
Maximum Voltage Rating (V)	300
Maximum Operating Temperature (°C)	150
Operating Temperature (°C)	-65 to 150
Shaft Style	Slotted
Switch Option	No
Minimum Operating Temperature (°C)	-65
Mechanical Rotational Life (Cycles)	200
Number of Electrical Turns (Turns)	12

PACKAGE INFO

Manufacturing Info

MSL	1
Maximum Reflow Temperature (°C)	250
Reflow Solder Time (Sec)	10 to 20
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Sn
Under Plating Material	N/A
Terminal Base Material	Cu

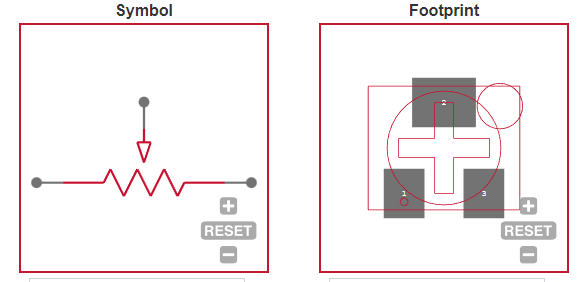

ECAD Models
