■ Surface Mount 4 mm Square / Multiturn
Cermet / Industrial / Sealed
|
■ Halogen free** with date code 114
|
■ Sealed to withstand board wash
processing
|
■ Pick and place centering design, with fl ush
adjustment
|
■ 4mm design meets EIA/EIAJ/IPC/VECI SMD
standard trimmer footprint
|
■ Low CRV - 1 %
|
■ RoHS compliant* - see processing
information on RoHS compliant surface
mount trimmers
|
■ For trimmer applications/processing
guidelines, click here
|
|
| CATALOG |
3224W-1-103E COUNTRY OF ORIGIN
|
3224W-1-103E PARAMETRIC INFO
|
3224W-1-103E PACKAGE INFO
|
3224W-1-103E MANUFACTURING INFO
|
3224W-1-103E PACKAGING INFO
|
3224W-1-103E ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Costa Rica
|
El Salvador
|
Italy
|
| United States of America |
United Kingdom of Great Britain and Northern Ireland
|
|
PARAMETRIC INFO
|
| Resistance Value (Ohm) |
10K |
| Positions of Adjustment |
Top |
| Electrical Rotation (°) |
4320 |
| Power Rating (W) |
0.25 (1/4) |
| Tolerance |
10% |
| Temperature Coefficient (ppm/°C) |
±100 |
| Type |
Trimmer |
| Technology |
Cermet |
| Negative Resistance Tolerance (%) |
-10 |
| Positive Resistance Tolerance (%) |
10 |
| Linear or Logarithmic |
Lin |
| Shaft Diameter (mm) |
1.5 |
| Number of Elements |
1 |
| Number of Turns (Turns) |
12(Elec) |
| Maximum Voltage Rating (V) |
300 |
| Maximum Operating Temperature (°C) |
150 |
| Operating Temperature (°C) |
-65 to 150 |
| Package Shape |
Square |
| Shaft Style |
Slotted |
| Switch Option |
No |
| Tradename |
Trimpot® |
| Minimum Operating Temperature (°C) |
-65 |
| Mechanical Rotational Life (Cycles) |
200 |
| Number of Electrical Turns (Turns) |
12 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Termination Style |
J-Hook |
| Product Length (mm) |
4.8 |
| Product Depth (mm) |
3.9 |
| Product Height (mm) |
5.3 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
0.283 |
| Length Tolerance (mm) |
±0.25 |
| Depth Tolerance (mm) |
±0.25 |
| Height Tolerance (mm) |
±0.25 |
| Diameter Tolerance (mm) |
N/R |
| Package/Case |
N/A |
| Maximum Product Length (mm) |
5.05 |
| Maximum Product Depth (mm) |
4.15 |
| Maximum Product Height (mm) |
5.55 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
10 to 20 |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|

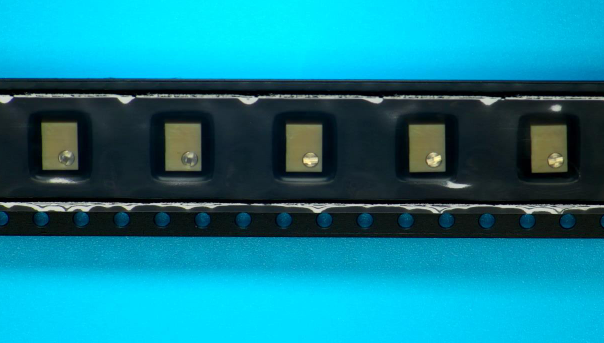

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
16.4 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
16 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

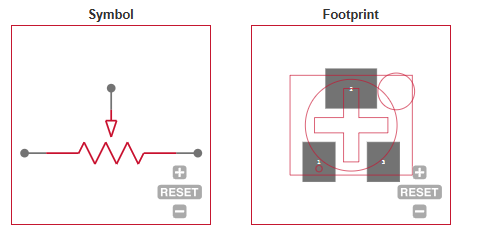

ECAD MODELS
|
|
| |
