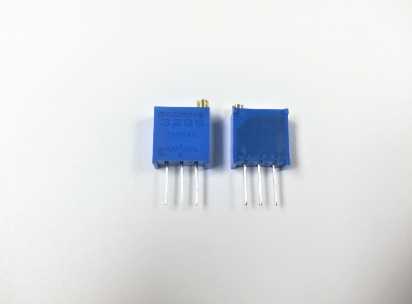

• Multiturn / Cermet / Industrial / Sealed
|
• 5 terminal styles
|
• Tape and reel packaging available
|
• Chevron seal design
|
• Listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-RelMil-R-39035
|
• RoHS compliant* version available
|
• For trimmer applications/processing guidelines, click here
|
|
| CATALOG |
3296W-1-103LF COUNTRY OF ORIGIN
|
3296W-1-103LF PARAMETRIC INFO
|
3296W-1-103LF PACKAGE INFO
|
3296W-1-103LF MANUFACTURING INFO
|
3296W-1-103LF PACKAGING INFO
|
| 3296W-1-103LF ECAD MODELS |
|
COUNTRY OF ORIGIN
|
Costa Rica
|
|
PARAMETRIC INFO
|
| Resistance Value (Ohm) |
10K |
| Positions of Adjustment |
Top |
| Electrical Rotation (°) |
9000 |
| Power Rating (W) |
0.5 (1/2) |
| Tolerance |
10% |
| Temperature Coefficient (ppm/°C) |
±100 |
| Type |
Trimmer |
| Technology |
Cermet |
| Negative Resistance Tolerance (%) |
-10 |
| Positive Resistance Tolerance (%) |
10 |
| Linear or Logarithmic |
Lin |
| Shaft Diameter (mm) |
2.19 |
| Number of Elements |
1 |
| Number of Turns (Turns) |
25(Elec) |
| Maximum Voltage Rating (V) |
300 |
| Maximum Operating Temperature (°C) |
125 |
| Operating Temperature (°C) |
-55 to 125 |
| Shaft Style |
Slotted |
| Switch Option |
No |
| Minimum Operating Temperature (°C) |
-55 |
| Shaft Length (mm) |
1.52 |
| Mechanical Rotational Life (Cycles) |
200 |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Termination Style |
Pin |
| Product Length (mm) |
9.53 |
| Product Depth (mm) |
4.83 |
| Product Height (mm) |
11.55 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
0.85 |
| Package/Case |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
1 |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
50 |
|
|

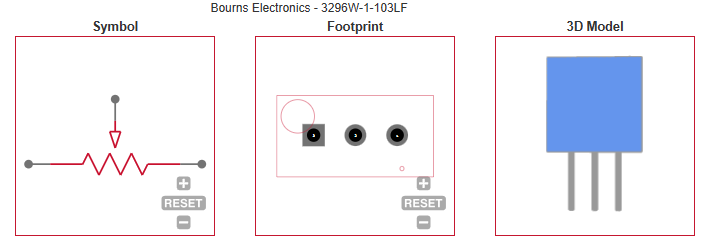

ECAD MODELS
|
|
|
