• Surface mount 2 mm Square / Single-turn / Cermet / Sealed
|
• Compatible with surface mount manufacturing processes
|
• Miniature design for flexibility
|
• RoHS compliant*
|
|
| CATALOG |
3312J-1-102E COUNTRY OF ORIGIN
|
3312J-1-102E PARAMETRIC INFO
|
3312J-1-102E PACKAGE INFO
|
3312J-1-102E MANUFACTURING INFO
|
3312J-1-102E PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Electrical Rotation (°) |
255 |
| Positions of Adjustment |
Top |
| Resistance Value (Ohm) |
1K |
| Power Rating (W) |
0.1 (1/10) |
| Tolerance |
20% |
| Temperature Coefficient (ppm/°C) |
±100 |
| Type |
Trimmer |
| Negative Resistance Tolerance (%) |
-20 |
| Technology |
Cermet |
| Linear or Logarithmic |
Lin |
| Positive Resistance Tolerance (%) |
20 |
| Number of Elements |
1 |
| Number of Turns (Turns) |
1(Elec)|1(Mech) |
| Maximum Voltage Rating (V) |
50 |
| Maximum Operating Temperature (°C) |
125 |
| Operating Temperature (°C) |
-55 to 125 |
| Shaft Style |
Slotted |
| Switch Option |
No |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
40 |
| Mechanical Rotation (°) |
285 |
| Number of Mechanical Turns (Turns) |
1 |
| Number of Electrical Turns (Turns) |
1 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Termination Style |
J-Hook |
| Product Length (mm) |
2.5 |
| Product Depth (mm) |
2.8 |
| Product Height (mm) |
1.7 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
0.0321 |
| Diameter Tolerance (mm) |
N/R |
| Package/Case |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
10 to 20 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|

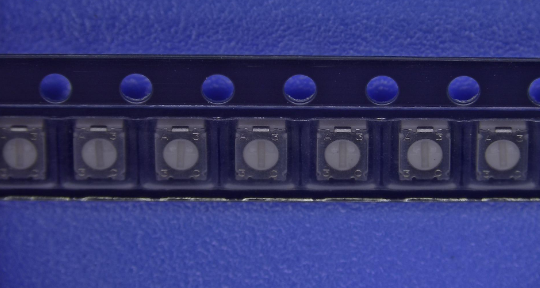

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
