• Surface Mount 3 mm Square Single-Turn Cermet / Sealed
|
• Compatible with surface mount manufacturing processes (not recommended for wave soldering)
|
• Rotor stop for “in-circuit” adjustment
|
• 100 cycle rotational and seal life
|
|
| CATALOG |
3313J-1-101E COUNTRY OF ORIGIN
|
3313J-1-101E PARAMETRIC INFO
|
3313J-1-101E PACKAGE INFO
|
3313J-1-101E MANUFACTURING INFO
|
3313J-1-101E PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
Costa Rica
|
|
PARAMETRIC INFO
|
| Electrical Rotation (°) |
220 |
| Positions of Adjustment |
Top |
| Resistance Value (Ohm) |
100 |
| Power Rating (W) |
0.125 (1/8) |
| Tolerance |
20% |
| Temperature Coefficient (ppm/°C) |
±150 |
| Type |
Trimmer |
| Negative Resistance Tolerance (%) |
-20 |
| Technology |
Cermet |
| Linear or Logarithmic |
Lin |
| Positive Resistance Tolerance (%) |
20 |
| Shaft Diameter (mm) |
1.93 |
| Number of Elements |
1 |
| Number of Turns (Turns) |
1(Elec)|1(Mech) |
| Maximum Voltage Rating (V) |
200 |
| Maximum Operating Temperature (°C) |
125 |
| Package Shape |
Square |
| Operating Temperature (°C) |
-55 to 125 |
| Shaft Style |
Slotted |
| Switch Option |
No |
| Anti-Sulfurated |
No |
| Tradename |
Trimpot® |
| Minimum Operating Temperature (°C) |
-55 |
| Mechanical Rotation (°) |
250 |
| Mechanical Rotational Life (Cycles) |
100 |
| Number of Mechanical Turns (Turns) |
1 |
| Number of Electrical Turns (Turns) |
1 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Termination Style |
J-Hook |
| Product Length (mm) |
3.2 |
| Product Depth (mm) |
3.5 |
| Product Height (mm) |
2.2 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
0.283 |
| Length Tolerance (mm) |
+0.4|-0.2 |
| Depth Tolerance (mm) |
±0.2 |
| Height Tolerance (mm) |
±0.2 |
| Diameter Tolerance (mm) |
N/R |
| Package/Case |
N/A |
| Maximum Product Length (mm) |
3.6 |
| Maximum Product Depth (mm) |
3.7 |
| Maximum Product Height (mm) |
2.4 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
10 to 20 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

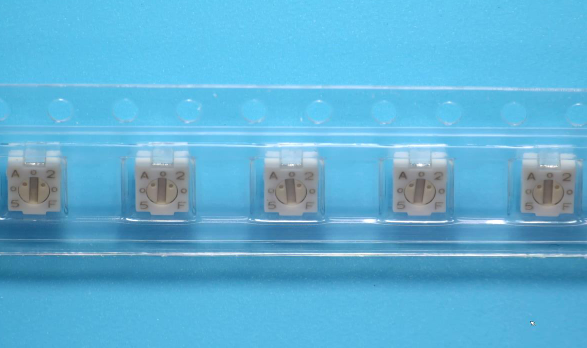

PACKAGING INFO
|
| Packaging Suffix |
E |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
12.4 |
| Tape Width (mm) |
12 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
