| • Single-Turn / Cermet / Industrial / Sealed
|
| • Miniature package |
| • Rotor designed for automatic machine
adjust interface |
| • Withstands harsh environments and
immersion cleaning processes |
| • Tape and reel packaging available |
| • RoHS compliant* version available |
| • For trimmer applications/processing
guidelines, click here |
|
| CATALOG |

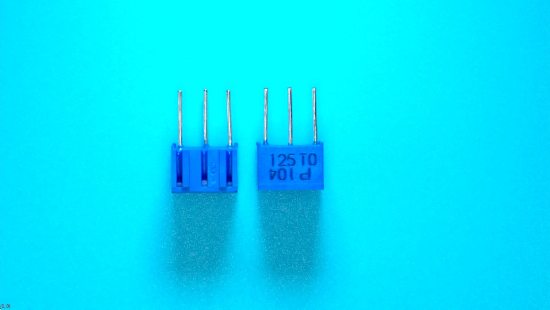

| 3362P-1-104LF COUNTRY OF ORIGIN |
| 3362P-1-104LF PARAMETRIC INFO |
| 3362P-1-104LF PACKAGE INFO |
| 3362P-1-104LF MANUFACTURING INFO |
| 3362P-1-104LF PACKAGING INFO |

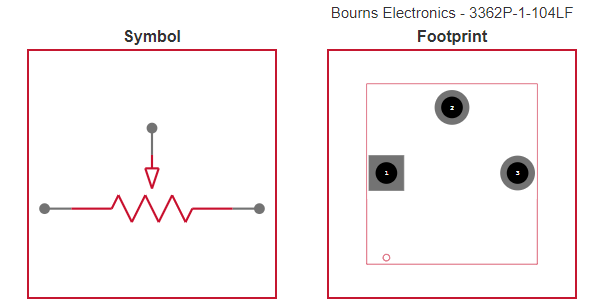

| 3362P-1-104LF ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| Costa Rica |
|
| PARAMETRIC INFO |
| Resistance Value (Ohm) |
100K |
| Positions of Adjustment |
Top |
| Electrical Rotation (°) |
240 |
| Power Rating (W) |
0.5 (1/2) |
| Tolerance |
10% |
| Temperature Coefficient (ppm/°C) |
±100 |
| Type |
Trimmer |
| Technology |
Cermet |
| Negative Resistance Tolerance (%) |
-10 |
| Positive Resistance Tolerance (%) |
10 |
| Linear or Logarithmic |
Lin |
| Shaft Diameter (mm) |
2.77 |
| Number of Elements |
1 |
| Number of Turns (Turns) |
1(Elec)|1(Mech) |
| Maximum Voltage Rating (V) |
300 |
| Maximum Operating Temperature (°C) |
125 |
| Operating Temperature (°C) |
-55 to 125 |
| Shaft Style |
Slotted |
| Switch Option |
No |
| Minimum Operating Temperature (°C) |
-55 |
| Mechanical Rotation (°) |
270 |
| Mechanical Rotational Life (Cycles) |
200 |
| Number of Mechanical Turns (Turns) |
1 |
| Number of Electrical Turns (Turns) |
1 |
|
| PACKAGE INFO |
| Mounting |
Through Hole |
| Termination Style |
Pin |
| Product Length (mm) |
6.6 |
| Product Depth (mm) |
6.99 |
| Product Height (mm) |
4.7 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
0.567 |
| Package/Case |
N/A |
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
1 |
|
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
100 |
| Packaging Document |
Link to Datasheet |
|
