350767-1 COUNTRY OF ORIGIN
|
350767-1 PARAMETRIC INFO
|
350767-1 PACKAGE INFO
|
350767-1 MANUFACTURING INFO
|
350767-1 PACKAGING INFO
|
350767-1 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Switzerland
|
Korea (Republic of)
|
United States of America
|
United Kingdom of Great Britain and Northern Ireland
|
Germany
|
India
|
|
PARAMETRIC INFO
|
| Type |
Housing |
| Gender |
RCP |
| Number of Contacts |
3 |
| Termination Method |
Crimp |
| Maximum Current Rating (A) |
19/Contact |
| Maximum Voltage Rating |
600VAC |
| Housing Material |
Nylon |
| Housing Color |
Natural |
| Number of Rows |
1 |
| Wire Size (AWG) |
10-30 |
| Insulation Resistance (MOhm) |
1000 |
| Operating Temperature (°C) |
-55 to 105 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
105 |
| Mating Cycle (Cycles) |
50 |
| Keyed |
Yes |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
6.35 |
| Body Orientation |
Straight |
| Mounting |
Panel Mount |
| Product Length (mm) |
N/A |
| Product Depth (mm) |
N/A |
| Product Height (mm) |
27.43 |
| Length Tolerance (mm) |
N/A |
| Depth Tolerance (mm) |
N/A |
| Height Tolerance (mm) |
±0.38 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/R |
| Under Plating Material |
N/R |
| Terminal Base Material |
N/R |
| Shelf Life Period |
N/A |
| Shelf Life Condition |
N/A |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Package |
| Quantity Of Packaging |
1 |
|
|

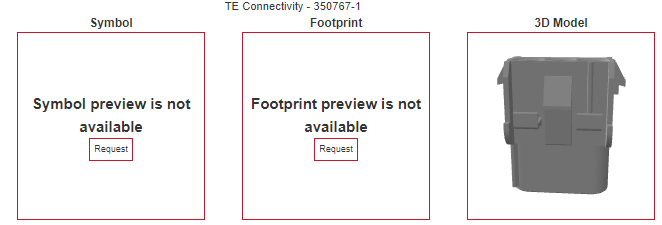

ECAD MODELS
|
|
|
