• Bushing mount
|
• Optional AR pin feature
|
• Plastic or metal shaft and bushings
|
| • Wirewound |
| • Solder lugs or PC pins |
| • Sealable (Full body seal) |
| • Designed for use in HMI applications |
| • RoHS compliant*Protection against loss of ground and loss of VCC |
| |
| CATALOG |

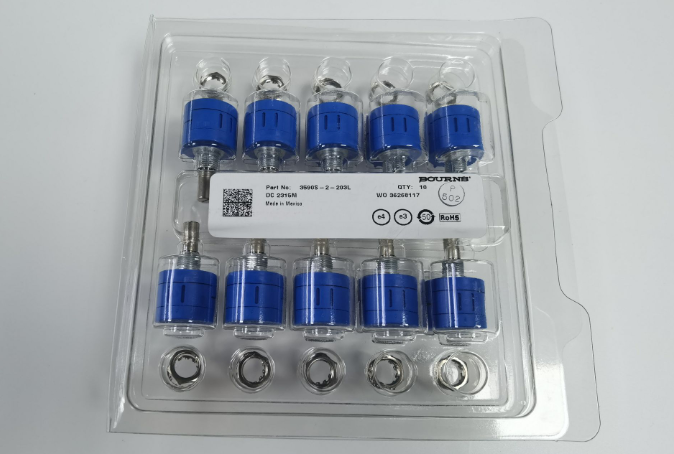

| 3590S-2-203L COUNTRY OF ORIGIN |
3590S-2-203L PARAMETRIC INFO
|
3590S-2-203L PACKAGE INFO
|
3590S-2-203L MANUFACTURING INFO
|
|
| COUNTRY OF ORIGIN |
| Mexico |
| India |
|
PARAMETRIC INFO
|
| Resistance Value (Ohm) |
20K |
| Positions of Adjustment |
Side |
| Electrical Rotation (°) |
3600 |
| Power Rating (W) |
2 |
| Tolerance |
5% |
| Temperature Coefficient (ppm/°C) |
±50 |
| Type |
Potentiometer |
| Technology |
Wirewound |
| Negative Resistance Tolerance (%) |
-5 |
| Positive Resistance Tolerance (%) |
5 |
| Linear or Logarithmic |
Lin |
| Shaft Diameter (mm) |
6.34 |
| Number of Elements |
1 |
| Number of Turns (Turns) |
10(Elec)|10(Mech) |
| Maximum Voltage Rating (V) |
450 |
| Maximum Operating Temperature (°C) |
125 |
| Operating Temperature (°C) |
-40 to 125 |
| Bushing Type |
Standard |
| Shaft Style |
Slotted |
| Switch Option |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
| Shaft Length (mm) |
20.62 |
| Mechanical Rotation (°) |
3600 |
| Number of Mechanical Turns (Turns) |
10 |
| Number of Electrical Turns (Turns) |
10 |
|
|
PACKAGE INFO
|
| Mounting |
Panel Mount |
| Termination Style |
Solder Lug |
| Product Length (mm) |
39.22 |
| Product Depth (mm) |
22.23 |
| Product Height (mm) |
26.66 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
19 |
| Package/Case |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Cu |
| Terminal Base Material |
Cu |
|
|
| |
