• Vertical and right angle
|
• Thru-hole and SMT models
|
• Multiple caps and legends
|
• Several LED colors and bi-color options
|
• RoHS compliant /compatible
|
|
| CATALOG |
400ECA01E COUNTRY OF ORIGIN
|
400ECA01E PARAMETRIC INFO
|
400ECA01E PACKAGE INFO
|
400ECA01E MANUFACTURING INFO
|
400ECA01E PACKAGING INFO
|
400ECA01E APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|

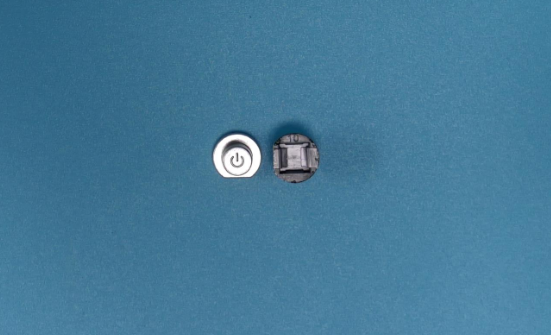

| Type |
Round Cap |
| Switch Type |
Tactile Switch |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Operating Temperature (°C) |
-25 |
| Operating Temperature (°C) |
-25 to 70 |
| Color |
Silver |
| Maximum Storage Temperature (°C) |
80 |
| Minimum Storage Temperature (°C) |
-25 |
|
|
PACKAGE INFO
|
| Product Length (mm) |
7.5 |
| Product Depth (mm) |
7.5 |
| Product Height (mm) |
6.3 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/R |
| Under Plating Material |
N/R |
| Terminal Base Material |
N/R |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Consumer electronics
|
• Server/storage
|
• Medical devices
|
| • Test/Measurement/Instrumentation |
| • Audio/Video |
| • Computers/Peripherals |
| • Security |
| |
