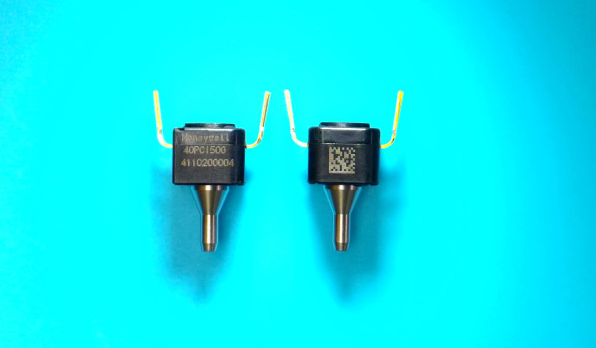

• Smallest amplified sensor package
|
• Minimal PCB space
|
• Fully signal conditioned
|
• Operating temperature range from −45° to +125°C
|
• Silicon piezoresistive technology
|
• Monolithic design
|
• 6 Pin DIP package
|
• Port designed for O-ring interface
|
• Excellent media compatibility
|
• Accuracy of 0.2%
|
|
| CATALOG |
40PC150G2A COUNTRY OF ORIGIN
|
40PC150G2A PARAMETRIC INFO
|
40PC150G2A PACKAGE INFO
|
40PC150G2A MANUFACTURING INFO
|

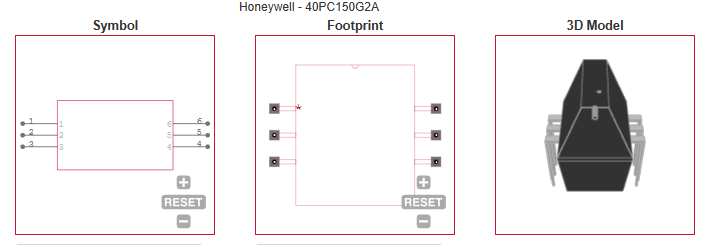

40PC150G2A ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Device Pressure Type |
Gage |
| Equivalent Overload Pressure Range (psi) |
100 to 500 |
| Maximum Operating Supply Voltage (V) |
5 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Overload Pressure |
300psi |
| Maximum Storage Temperature (°C) |
125 |
| Maximum Supply Current (mA) |
10 |
| Minimum Operating Supply Voltage (V) |
4.75 |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Storage Temperature (°C) |
-55 |
| Operating Pressure Range |
0psi to 150psi |
| Media |
Gas |
| Typical Full Scale Output |
4.5VDC |
| Typical Operating Supply Voltage (V) |
5 |
| Accuracy (%) |
±2.5 |
| Operating Supply Voltage (V) |
5(Max) |
|
|
PACKAGE INFO
|
| Supplier Package |
DIP |
| Basic Package Type |
Through Hole |
| Pin Count |
6 |
| Lead Shape |
Through Hole |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
13.2 |
| Package Width (mm) |
11.2 |
| Package Height (mm) |
19.8 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
19.8 |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
N/A |
| Package Description |
Dual In Line Package |
| Package Family Name |
DIP |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 to 270 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
| ECAD MODELS |
 |
| |
