COUNTRY OF ORIGIN
|
United States of America
|
|
PARAMETRIC INFO
|

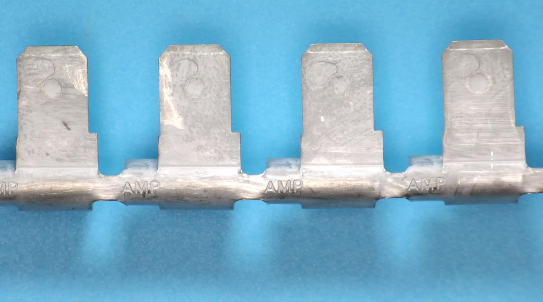

| Type |
Quick Disconnect Terminal |
| Wire Size (AWG) |
14-18 |
| Gender |
M |
| Plating |
Tin |
| Termination Method |
Crimp |
| Body Material |
Brass |
| Insulation |
Non-Insulated |
| Tab Size (mm²) |
5.14 |
| Tab Dimensions (mm) |
6.35x0.81 |
| Operating Temperature (°C) |
-40 to 110 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
110 |
|
|
PACKAGE INFO
|
| Product Length (mm) |
12.7 |
| Product Depth (mm) |
N/A |
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
8000 |
|
|
