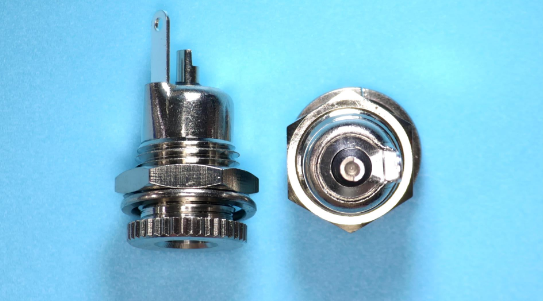

54-00063 Hirose Connector CONN PWR JACK 2.1X5.5MM SOLDER

label:
2024/08/26 335
54-00063 Hirose Connector CONN PWR JACK 2.1X5.5MM SOLDER


54-00063 COUNTRY OF ORIGIN
54-00063 PARAMETRIC INFO
54-00063 PACKAGE INFO
54-00063 MANUFACTURING INFO
54-00063 PACKAGING INFO


COUNTRY OF ORIGIN
China


PARAMETRIC INFO
Type DC Power
Gender F
Number of Contacts 2
Termination Method Solder Lug
Number of Ports 1
Maximum Current Rating (A) 5
Maximum Voltage Rating 12VDC
Housing Material Polybutylene Terephthalate
Housing Color Black
Contact Material Copper Alloy
Contact Plating Nickel
Insulation Resistance (MOhm) 100
Maximum Contact Resistance (mOhm) 50
Operating Temperature (°C) -10 to 60
Minimum Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 60
Mating Cycle (Cycles) 5000


PACKAGE INFO
Terminal Pitch (mm) N/A
Body Orientation Straight
Mounting Panel Mount
Number of Terminals 2
Product Length (mm) 24.2
Product Depth (mm) 13
Product Height (mm) 13
Product Diameter (mm) 12.5
Product Weight (g) N/A


MANUFACTURING INFO
Lead Finish(Plating) N/A


PACKAGING INFO
Packaging Document Link to Datasheet
