5600200720 COUNTRY OF ORIGIN
|
5600200720 PACKAGE INFO
|
5600200720 MANUFACTURING INFO
|
5600200720 PACKAGING INFO
|
5600200720 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
United States of America
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2 |
| Body Orientation |
Straight |
| Mounting |
Surface Mount |
| Product Length (mm) |
20.6 |
| Product Length (Ejector Open) (mm) |
N/R |
| Product Depth (mm) |
9.15 |
| Product Height (mm) |
8 |
| Product Weight (g) |
0.8 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
250 to 255 |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
650 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

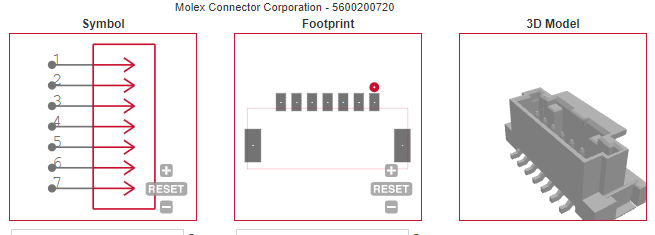

ECAD MODELS
|
|
|
