• Lowest ESR in Class
|
• Highest Working Voltage in Class - 250 V
|
• Standard EIA Size: 0603
|
• Laser Marking (Optional)
|
• High Self-Resonance Frequencies
|
|
| CATALOG |
600S0R5BT250XT PARAMETRIC INFO
|
600S0R5BT250XT PACKAGE INFO
|
600S0R5BT250XT MANUFACTURING INFO
|
600S0R5BT250XT PACKAGING INFO
|

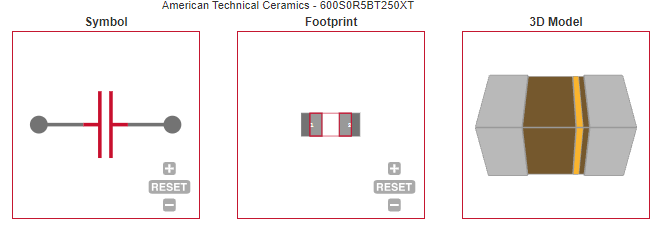

600S0R5BT250XT ECAD MODELS
|
600S0R5BT250XT APPLICATIONS
|
|
PARAMETRIC INFO
|
| Capacitance Value |
0.5pF |
| Voltage |
250VDC |
| Tolerance |
0.1pF |
| Dielectric |
C0G |
| Technology |
Standard |
| Maximum Operating Temperature (°C) |
125 |
| Case Style |
Ceramic Chip |
| Construction |
Flat |
| Microwave Application |
Yes |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| Equivalent Series Resistance Type |
Ultra Low |
| DC Rated Voltage (VDC) |
250 |
| Polarity |
Non Polar |
| Special Features |
High Quality|Low Loss |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Package/Case |
0603 |
| Mounting |
Surface Mount |
| Termination Style |
Pad |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
1.6 |
| Product Depth (mm) |
0.81 |
| Product Height (mm) |
0.89(Max) |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
N/A |
| Length Tolerance (mm) |
±0.15 |
| Depth Tolerance (mm) |
±0.15 |
| Height Tolerance (mm) |
N/A |
| Diameter Tolerance (mm) |
N/R |
| Number of Terminals |
2 |
| Size (mm) |
1.6 X 0.81 X 0.89 |
| Maximum Product Length (mm) |
1.75 |
| Maximum Product Depth (mm) |
0.96 |
| Maximum Product Height (mm) |
0.89 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
265 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Maximum Wave Temperature (°C) |
265 |
| Wave Solder Time (Sec) |
3 |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
| Number of Wave Cycles |
2 |
|
|

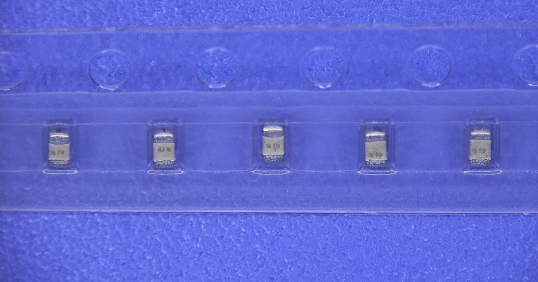

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Reel Diameter (in) |
7 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Cellular Base Stations
|
• Broadband Wireless Services
|
• Satellite Communications
|
| • Subscriber-based Wireless Devices |
| • WiFi (802.11) |
| • Public Safety Radio |
| |
