62501421621 COUNTRY OF ORIGIN
|
62501421621 PARAMETRIC INFO
|
62501421621 PACKAGE INFO
|
62501421621 MANUFACTURING INFO
|
62501421621 PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|

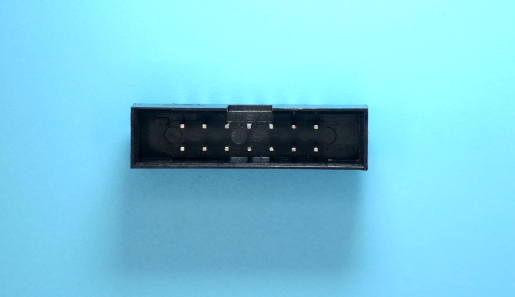

| Type |
Shrouded Header |
| Gender |
HDR |
| Number of Contacts |
14 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
2 |
| Maximum Voltage Rating |
250VAC |
| Housing Material |
Polybutylene Terephthalate |
| Housing Color |
Black |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold |
| Number of Rows |
2 |
| Row Spacing (mm) |
2 |
| Maximum Contact Resistance (mOhm) |
20 |
| Insulation Resistance (MOhm) |
1000 |
| Operating Temperature (°C) |
-40 to 125 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2 |
| Body Orientation |
Straight |
| Mounting |
Through Hole |
| Product Length (mm) |
21.2 |
| Product Depth (mm) |
5.5 |
| Product Height (mm) |
5.6 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
250 to 260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
|
|
