COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Hard Metric |
| Gender |
RCP |
| Number of Contacts |
40Signal/20Ground |
| Termination Method |
Press Fit |
| Maximum Current Rating (A) |
0.7/Contact |
| Maximum Voltage Rating |
250VAC |
| Housing Material |
Glass Filled Polyester |
| Housing Color |
Gray |
| Contact Material |
Copper-Nickel-Silicon |
| Contact Plating |
Gold Over Nickel |
| Number of Rows |
4 |
| Maximum Contact Resistance (mOhm) |
50 |
| Insulation Resistance (MOhm) |
10000 |
| Operating Temperature (°C) |
-65 to 105 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
105 |
| Tail Length (mm) |
2.5 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2.5 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Product Length (mm) |
24.95 |
| Product Depth (mm) |
19.9 |
| Product Height (mm) |
13.35 |
| Length Tolerance (mm) |
N/A |
| Depth Tolerance (mm) |
±0.1 |
| Height Tolerance (mm) |
±0.08 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
CuNiSi |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
20 |
| Packaging Document |
Link to Datasheet |
|
|

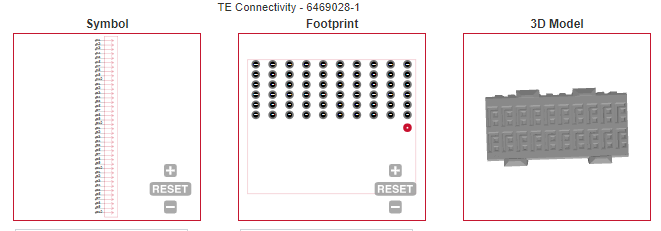

ECAD MODELS
|
|
|
