66953-007LF COUNTRY OF ORIGIN
|
66953-007LF PARAMETRIC INFO
|
66953-007LF PACKAGE INFO
|
66953-007LF MANUFACTURING INFO
|
66953-007LF PACKAGING INFO
|

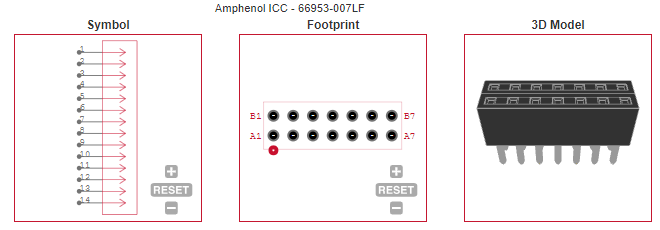

66953-007LF ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Socket Strip |
| Gender |
SKT |
| Number of Contacts |
14 |
| Termination Method |
Solder |
| Tradename |
Dubox® |
| Maximum Current Rating (A) |
3/Contact |
| Maximum Voltage Rating |
1250VAC |
| Housing Material |
Polyester |
| Housing Color |
Black |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold Over Nickel |
| Number of Rows |
2 |
| Row Spacing (mm) |
2.54 |
| Maximum Contact Resistance (mOhm) |
15 |
| Insulation Resistance (MOhm) |
5000 |
| Operating Temperature (°C) |
-65 to 125 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Terminal Width (mm) |
0.74(Typ) |
| Tail Length (mm) |
3.51 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2.54 |
| Body Orientation |
Straight |
| Mounting |
Through Hole |
| Product Length (mm) |
17.78 |
| Product Depth (mm) |
6.1 |
| Product Height (mm) |
8.25 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
15 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Phosphor-Bronze |
|
|
PACKAGING INFO
|
|
|
ECAD MODELS
|
|
| |
