734035112 COUNTRY OF ORIGIN
|
734035112 PARAMETER INFORMATION
|
734035112 PACKAGING INFORMATION
|
734035112 MANUFACTURING INFORMATION
|
734035112 PACKAGING INFORMATION
|
734035112 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETER INFORMATION
|
| type |
SMB |
| FAKRA/USCAR Standard |
FAKRA |
| Gender |
RCP |
| Operating Frequency (Hz) |
0 to 6G |
| Impedance (Ohm) |
50 |
| Termination Method |
Solder |
| Contact Plating |
Gold |
| Contact Gender |
PIN |
| Contact Material |
Brass/Phosphor Bronze |
| Terminate To |
PCB |
| Body Plating |
Tin/Nickel |
| Body Material |
Brass |
| Insulator Material |
Teflon |
| Insulation Resistance (MOhm) |
5000 |
| Polarity |
Reverse |
| Operating Temperature (°C) |
-40 to 105 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Mating System |
Locking Ramp |
| Maximum Voltage Rating |
335VAC |
|
|
PACKAGING INFORMATION
|
| Body Orientation |
Right Angle |
| Install |
Through Hole |
| Product Length (mm) |
7.5 |
| Product Depth (mm) |
20.88 |
| Product Height (mm) |
10.55 |
| Product Diameter (mm) |
not applicable |
| Product Weight (g) |
4.452 |
|
|
MANUFACTURING INFORMATION
|
| MSL |
N/R |
| Maximum reflow temperature (°C) |
N/R |
| Reflow time (seconds) |
N/R |
| Reflow temperature source |
Link to data sheet |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
10 |
| Wave soldering temperature source |
Link to data sheet |
| Lead Finish(Plating) |
not applicable |
| Plating materials |
not applicable |
| Terminal base material |
not applicable |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFORMATION
|
|
|
|

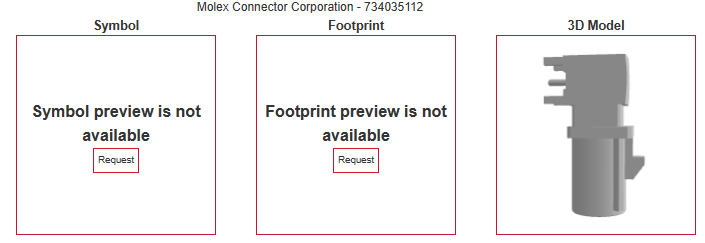

| ECAD MODELS |
|
|
