74279220601 COUNTRY OF ORIGIN
|
74279220601 PARAMETRIC INFO
|
74279220601 PACKAGE INFO
|
74279220601 MANUFACTURING INFO
|
74279220601 PACKAGING INFO
|
74279220601 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Multi-Layer High Current |
| Impedance (Ohm) |
600 |
| Tolerance |
25% |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
2.1 |
| Maximum DC Resistance (Ohm) |
0.08 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Terminal Width (mm) |
0.8 |
| Maximum Storage Temperature (°C) |
60 |
| Minimum Storage Temperature (°C) |
-20 |
|
|
PACKAGE INFO
|
| Case Size |
0805 |
| Maximum Product Length (mm) |
2.2 |
| Maximum Product Depth (mm) |
1.4 |
| Maximum Product Height (mm) |
1.1 |
| Maximum Product Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020E |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
| Number of Wave Cycles |
N/R |
|
|

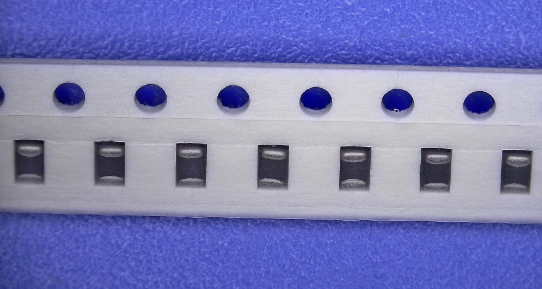

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Polystyrene |
| Tape Type |
Embossed |
|
|

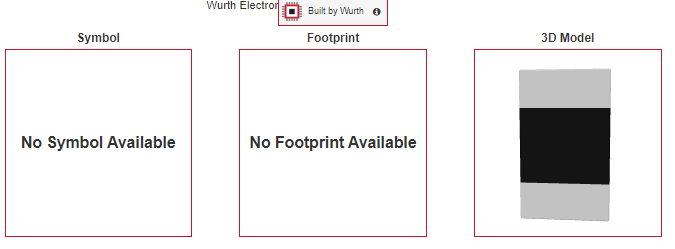

ECAD MODELS
|
|
|
