| CATALOG |
742792662 COUNTRY OF ORIGIN
|
742792662 PARAMETRIC INFO
|
742792662 PACKAGE INFO
|
742792662 MANUFACTURING INFO
|
742792662 PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Multi-Layer |
| Impedance (Ohm) |
1K |
| Tolerance |
25% |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
0.83 |
| Maximum DC Resistance (Ohm) |
0.3 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Case Size |
0603 |
| Maximum Product Length (mm) |
1.8 |
| Maximum Product Depth (mm) |
1 |
| Maximum Product Height (mm) |
1 |
| Maximum Product Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 30 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
|
|
PACKAGING INFO
|

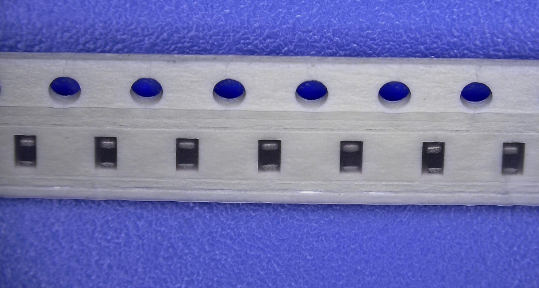

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Packaging Document |
Link to Datasheet |
|
|
