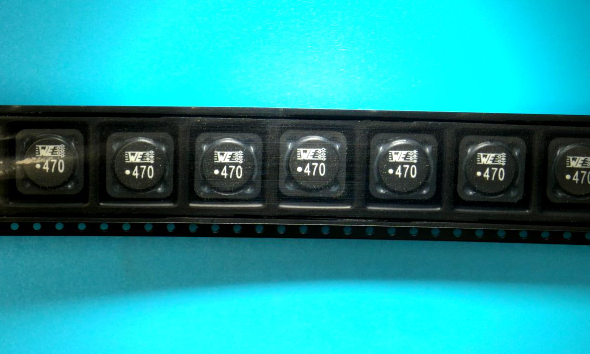

| CATALOG |
| 744770147 COUNTRY OF ORIGIN |
| 744770147 PARAMETRIC INFO |
| 744770147 PACKAGE INFO |
| 744770147 MANUFACTURING INFO |
| 744770147 PACKAGING INFO |
|
| COUNTRY OF ORIGIN |
| China |
| Thailand |
|
| PARAMETRIC INFO |
| Type |
Power Choke |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
47u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
3 |
| Maximum Saturation Current (A) |
4.3(Typ) |
| Maximum DC Resistance (Ohm) |
0.064 |
| Minimum Self Resonant Frequency (Hz) |
7.9M(Typ) |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
|
| |
| PACKAGE INFO |
| Case Size |
N/A |
| Product Length (mm) |
12.3 |
| Product Depth (mm) |
12.3 |
| Product Height (mm) |
8 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
N/A |
| Mounting |
Surface Mount |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
20 to 30 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
|
| |
| PACKAGING INFO |
|
|
| |
|
