| CATALOG |
7448709220 COUNTRY OF ORIGIN
|
7448709220 PARAMETRIC INFO
|
7448709220 PACKAGE INFO
|
7448709220 MANUFACTURING INFO
|
7448709220 PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power Choke |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
22u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
1K |
| Maximum DC Current (A) |
3.5 |
| Maximum Saturation Current (A) |
5(Typ) |
| Maximum DC Resistance (Ohm) |
0.08 |
| Minimum Self Resonant Frequency (Hz) |
10M(Typ) |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 125 |
|
|
PACKAGE INFO
|
| Case Size |
N/A |
| Maximum Product Length (mm) |
12.5 |
| Maximum Product Depth (mm) |
12.5 |
| Maximum Product Height (mm) |
10.5 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
4 |
| Product Weight (g) |
N/A |
| Mounting |
Surface Mount |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 30 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

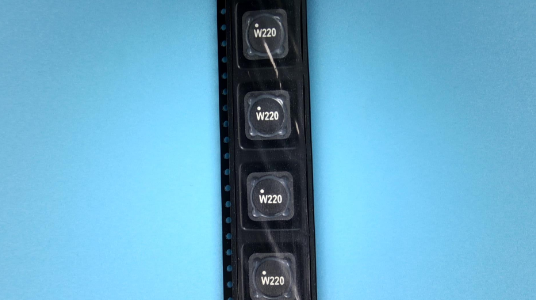

PACKAGING INFO
|
|
|
