COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
RJ-45 |
| Gender |
F |
| Number of Contacts |
8 |
| Termination Method |
Solder |
| Number of Ports |
1 |
| Number of Loaded Positions |
8 |
| Housing Color |
Black |
| Housing Material |
Polyamide 6/6 |
| Shell Material |
Brass |
| Shell Plating |
Nickel |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Gold Over Nickel |
| Product Style |
Single |
| Operating Temperature (°C) |
-40 to 85 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Mating Cycle (Cycles) |
750 |
| Left/Right LED Color |
Green/Yellow |
| Integrated Magnetics |
Yes |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2.54 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Number of Terminals |
10 |
| Product Length (mm) |
16 |
| Product Depth (mm) |
21.25 |
| Product Height (mm) |
13.5 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
250 to 260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
|
|

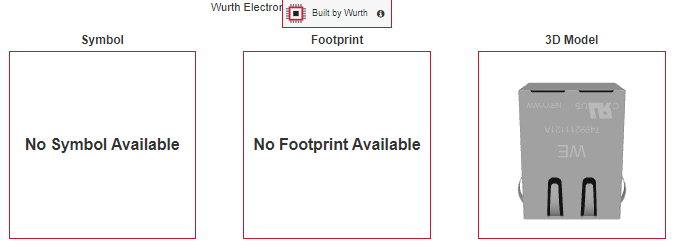

ECAD MODELS
|
|
|
