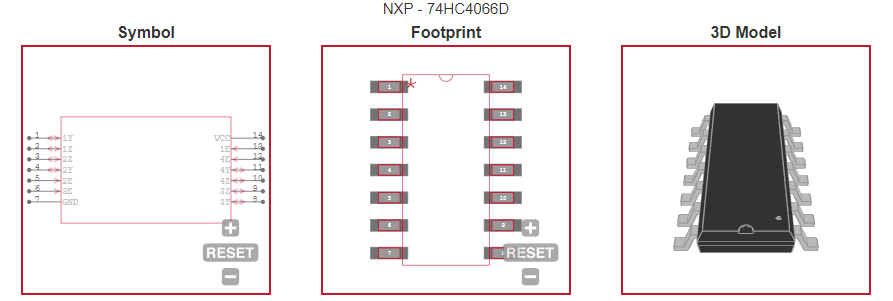

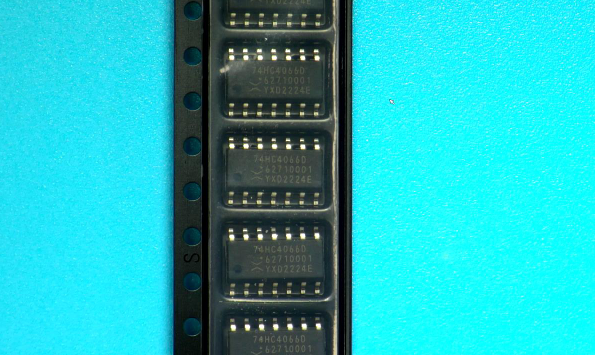

| Type |
Analog Switch |
| Number of Channels per Chip |
4 |
| Switch Architecture |
SPST |
| Polarity |
Non-Inverting |
| Maximum On Resistance Range (Ohm) |
100 to 150 |
| Configuration |
Quad SPST |
| Number of Inputs per Chip |
4 |
| Logic Family |
HC |
| Number of Outputs per Chip |
4 |
| Function |
General |
| Chip Enable Signals |
Yes |
| Maximum On Resistance (Ohm) |
142@4.5V |
| Maximum Propagation Delay Bus to Bus (ns) |
2(Typ)@9V|2(Typ)@6V|3(Typ)@4.5V|8(Typ)@2V |
| Maximum Turn-On Time (ns) |
36(Typ)@2V |
| Maximum Turn-Off Time (ns) |
44(Typ)@2V |
| Maximum Power Dissipation (mW) |
500 |
| Input Signal Type |
Single |
| Output Signal Type |
Single |
| Propagation Delay Test Condition (pF) |
50 |
| Maximum Low Level Output Current (mA) |
25 |
| Maximum High Level Output Current (mA) |
25 |
| Maximum Frequency (25°C) @ Vcc (MHz) |
180(Typ)@4.5V|200(Typ)@9V |
| Switch Control Logic |
Active High |
| Switch Normal Position |
NO |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Power Supply Type |
Single |
| Minimum Single Supply Voltage (V) |
2 |
| Typical Single Supply Voltage (V) |
5 |
| Maximum Single Supply Voltage (V) |
10 |
| Maximum Supply Current (mA) |
0.08@10V@-40C to 125C |
