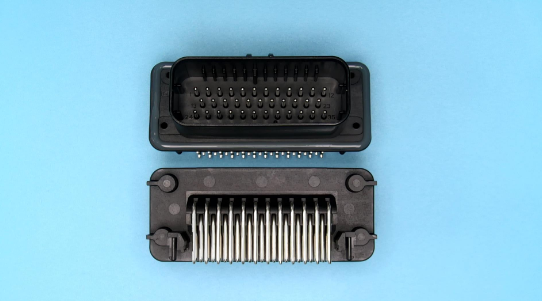

776163-1 TE Connectivity CONN HEADER R/A 35POS 4MM

label:

2025/01/10 209

776163-1 TE Connectivity CONN HEADER R/A 35POS 4MM

CATALOG

776163-1 PACKAGE INFO

776163-1 MANUFACTURING INFO

776163-1 PACKAGING INFO

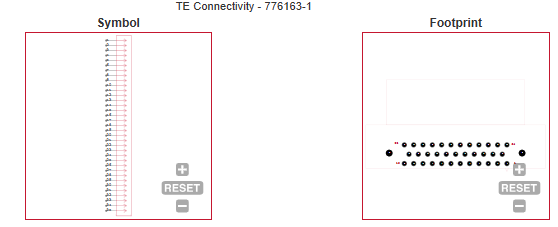

776163-1 ECAD MODELS

Terminal Pitch (mm)	2
Body Orientation	Right Angle
Mounting	Through Hole
Product Length (mm)	76.9
Product Length (Ejector Open) (mm)	N/R
Product Depth (mm)	37.9
Product Height (mm)	32.1
Length Tolerance (mm)	±0.2
Depth Tolerance (mm)	±0.2
Height Tolerance (mm)	±0.2
Product Weight (g)	N/A

MANUFACTURING INFO

MSL	N/R
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Maximum Wave Temperature (°C)	265
Wave Solder Time (Sec)	N/A
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	N/A
Under Plating Material	N/A
Terminal Base Material	Brass

Quantity Of Packaging

1
