• Compatible with most surface mount soldering processes
|
• Compatible with popular vacuum pickand-place equipme
|
• J-hook, gull-wing & pinned configurations
|
• Sealed for board washing
|
|
| CATALOG |
7914G-1-000E COUNTRY OF ORIGIN
|
7914G-1-000E PARAMETRIC INFO
|
7914G-1-000E PACKAGE INFO
|
7914G-1-000E MANUFACTURING INFO
|
7914G-1-000E PACKAGING INFO
|
7914G-1-000E ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Key Switch |
| Pole Throw Configuration |
SPST |
| Switch Configuration |
N.O. |
| Maximum Current Rating (A) |
0.1@16VAC 16VDC |
| Maximum AC Voltage Rating (V) |
16 |
| Maximum DC Voltage Rating (V) |
16 |
| Mechanical Life (Cycles) |
100000 |
| Actuator Style |
Round Button |
| Operating Force (N) |
2.94 |
| Ground Terminal |
No |
| Contact Material |
Gold |
| Base Material |
Thermoplastic |
| Base/Housing Material |
Thermoplastic/N/A |
| Dielectric Strength |
250VAC |
| Maximum Contact Resistance (mOhm) |
100 |
| Minimum Insulation Resistance (MOhm) |
100 |
| Actuator Length (mm) |
1.65 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| IP Rating |
IP67 |
| Body Length (mm) |
5 |
| Body Depth (mm) |
5 |
| Terminal Length (mm) |
0.6 |
| Number of Rows |
2 |
| Row Spacing (mm) |
5.5 |
| Operating Temperature (°C) |
-55 to 125 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Termination Style |
Gull Wing |
| Mounting |
Surface Mount |
| Body Orientation |
Straight |
| Product Length (mm) |
5 |
| Product Depth (mm) |
6.2 |
| Product Height (mm) |
4.19 |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
2.54 |
| Number of Terminals |
4 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
10 to 15 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
E |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
10000 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

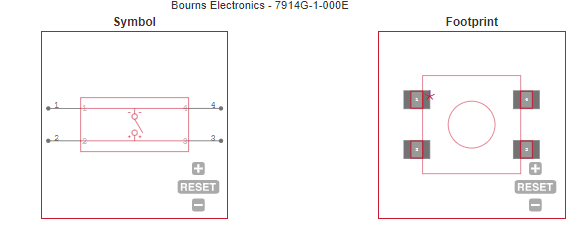

| ECAD MODELS |
 |
| |
